NAC-3 Core VRF Autopilot Pack
NAC-3 Core VRF Autopilot Pack

NAC-3 Core VRF Autopilot Pack

No reviews yet
Part Number:

When building an autopilot network for a rudder steered boat, the NAC-3 core pack is the perfect place to start. The core package will work with select Simrad and B&G headunits or dedicated autopilot controllers, and will simply need the correct sized drive unit to finish it off.

This system is designed for boats over 10m - For boats under 10m, the NAC-2 offers the same pack, tailored towards smaller boats.

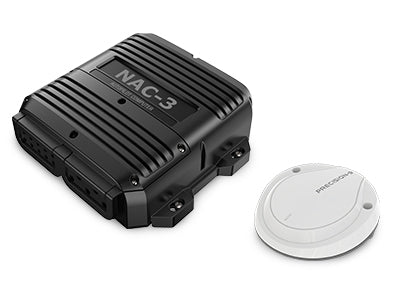

This pack includes a NAC-3 Core computer, and Precision-9 solid state compass. The core computer takes the bearing data from the Precision 9 to generate a heading based on inputs from your B&G or Simrad Multi-function display (or dedicated autopilot controller). With integrated Virtual Rudder Feedback (VRF), the NAC-3 Core eliminates the need to install a mechanical rudder feedback unit, and utilises the outstanding rate of turn accuracy from the Precision-9 to deliver uncompromising steering performance.

The entire system runs over the NMEA2000 network, and with simple automatic tuning and compass calibration, the NAC-3 is easy to install and use.

Package includes

  • 1x NAC-3 Core Computer
  • 1x Precision-9 Solid State Compass
  • All required NMEA 2000 backbone cables and connectors.

Specifications

  • Power Output: 8amps Continuous, 16amps Peak. (Suitable for low-current drive units)
  • Clutch Output: Yes
  • Connections: NMEA2000
