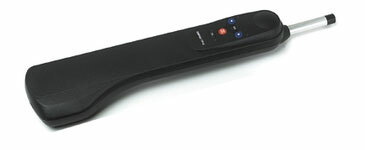

TP10 Tiller AutoPilot
TP10 Tiller AutoPilot

TP10 Tiller AutoPilot

No reviews yet
Part Number:

Simrad TP10 range delivers reliable auto steering for boats with tillers up to 9.7m (32ft) in length. Simple, straightforward controls and a precise steering system - normally only found on higher-end models - combines in a quiet package with extremely low power draw to allow sailors a safe passage in coastal waters.

Specifications

Technical/Environmental

Operating Temperature -10° to +55°C
Operating Temperature Stored -10° to +55°C
Product Width 105 mm / 4.1 in
Product Depth 60 mm / 2.4 in
Product Height 610 mm / 24 in

Power

Power Supply (Supply Voltage) 12Vdc (10.8 - 16Vdc)
Power Consumption Auto 0.5A
Power Consumption Standby 0.06A

Other

Adjustable Gain True
Alarm Audible And Visible True
Automatic Tracking True
Auto Trim True
Gain 1-9
Night Illumination True
Non Volatile Memory True
Storm Proof True
Auto Seastate True

Autopilot/Auto-Steering

Intelligent Steering Action True
Max Boat Length [m] 10
Mounting Selectable Port Or Starboard True
Peak Thrust 65kg
Drive System Screw thread
Fluxgate Compass True
Max Boat Displacement [tons] 3.7

After ordering online, you will receive an automated email confirmation containing your order details. Your order will then be confirmed within a few minutes of placing your order.

It is our policy to ensure we deliver to our customers in a timely manner. In order to achieve this we use a range of freight companies depending on the size and weight of your order. In some instances we may use a number of carriers to get your products to you. For example, chain may come by road, some electronic equipment by air.


Most orders are shipped within 2 - 5 Days

Shipping rates

Orders delivered to Australian Post Codes attract an $18.00 Flat Rate Shipping Charge* This excludes Bulky or Dangerous Goods


For Bulky Goods, Dangerous Goods and Remote areas.

If the cost to send is vastly different to our standard delivery costs, someone from our team will contact you prior to dispatch to arrange further payment or to issue a refund if you are not happy with the additional charges.

International orders will be charged at $0.00 initially and our staff will be in contact with a shipping quote. If the quote is not accepted the customer reserves the right to cancel their order and be refunded in full.

Should you have any queries or concerns about shipping, please don't hesitate to get in touch by clicking the support button on bottom right of the page.
