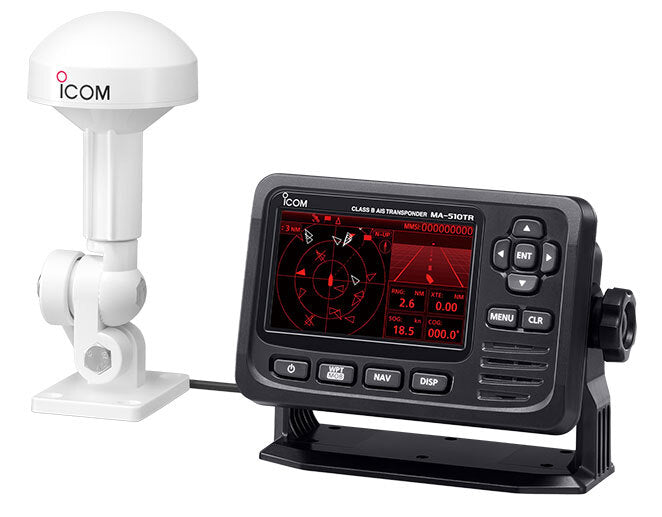

Class B AIS Transponder with Wide Viewing-Angle Color TFT LCD receiving both Class A and B AIS Signals

Benefits of AIS

An AIS transponder on your boat automatically receives information broadcast by other AIS-equipped vessels and base stations, all while your own vessel's static and dynamic information is being transmitted. Using with an AIS transponder, you can find AIS mounted small boats and buoys that are difficult to be detected with a marine radar. The MA-510TR can receive both Class A and B AIS signals and increase your safety at sea.

4.3 Inch Colour TFT LCD

The wide viewing, high resolution 4.3 inch colour TFT display clearly shows your and other vessels' positions. Potentially dangerous vessels are shown in red and shops registered as your friends are shown in yellow. The day-mode display is readable in direct sunlight, and the night-mode display ensures good readability in the dark for further convenience.

AIS Target List & Details

The 'Target' list screen shows all detected AIS-equipped vessels and targets. The 'Danger' list screen shows a list of vessels that are within six nautical miles of Closest Point of Approach (CPA) and sixty minutes of Time to Closest Point of Approach (TCPA) from your vessel. The 'Friend' list screen displays the detected AIS targets that you set as friends. When you want to see target details, select the target by the cursor keys and push [ENT] key.

Individual DSC Call

You can transmit an individual DSC Call by simply selecting an AIS target and the voice channel on the MA-510TR

NMEA 2000™ & NMEA 0183 Connectivity

With the plug-and-play functionality of NMEA 2000™, the MA-510TR can connect to a NMEA 2000™ network (an external plotter, marine radar and VHF radio).Using NMEA 0183/-HS connectivity, the transponder can connect to a transceiver, plotter device, marine radar or GPS receiver.

USB Connectivity

AIS data can be output from an USB cable connector on the rear panel

Collision Alarm Function

When a vessel comes into the CPA or TCPA range, the vessel's icon blinks on the plotter display and a beep sound is heard. When connected to external audio equipment installed on the chart table or fly bridge, the collision alarm function will alert you, even when you are away from the AIS transponder.

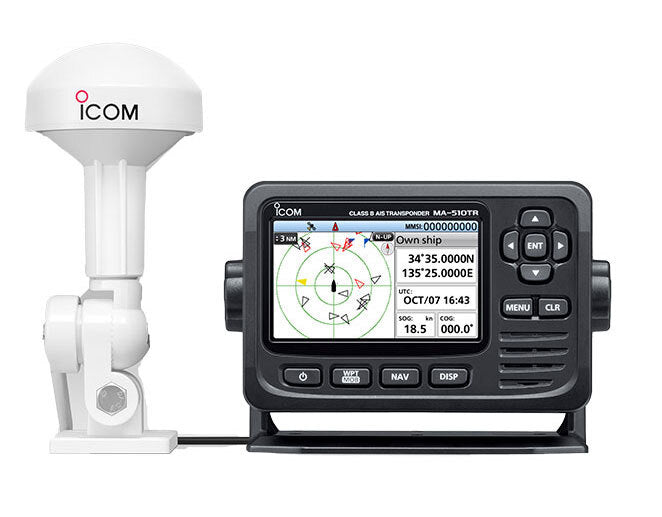

Supplied GPS Antenna

The GPS receiver with SBAS function is integrated into the MA-510TR. Position information can be simply received with connection to the supplied GPS antenna with 10m, 32.8 ft cable.

Silent Mode for Security & Privacy

Silent mode switches off the AIS transmitter and allows you to temporarily stop transmitting your vessel's position information. This function us useful when you do not want to reveal your fishing spots to other vessels. You can receive other vesse;'s AIS reports also while you're on silent mode.

Other Features:

  • Compatible with both m12v and 24v power sources
  • Multi-lingual user interface
  • Anchor watch function sounds an alarm when your vessel is at anchor but has drifted
  • IPX7 waterproof protection
Frequency coverage 161.500 MHz to 162.025 MHz
Type of Emission 16K0GXW (GMSK)
Antenna impedance 50 nominal
Intermediate frequency CH-A 1st: 21.700 MHz, 2nd: 450 kHz
CH-B 1st: 30.150 MHz, 2nd: 450 kHz
Operating temperature range –20°C to +60°C, –4°F to +140°F
Power supply requirement Negative ground: 12 V or 24 V DC nominal (9.6 to 31.2 V)
Current drain (at 12 V DC) TX: 1.5 A, RX: 0.7 A
Dimensions (approximate)
(Projections not included)
166.2 (W) × 110.2 (H) × 92.5 (D) mm
6.5 (W) x 4.3 (H) x 3.6 (D) inch
Weight (approximate) 700 g, 1.5 lb
Output power 2 W
Modulation 16K0GXW (GMSK)
Conducted spurious emission Less than –36 dBm (9 kHz–1 GHz)
Less than –30 dBm (1 GHz–4 GHz)
Sensitivity Less than –110 dBm
Adjacent channel selectivity More than –31 dBm
Spurious response More than –31 dBm
Intermodulation More than –36 dBm
Conducted spurious emission Less than –57 dBm (9 kHz–1 GHz)
Less than –47 dBm (1 GHz–4 GHz)
Blocking More than –15 dBm (±0.5 MHz–±5 MHz)
More than –23 dBm (±5 MHz–±10 MHz)
Co-channel More than –111 dBm
Frequency coverage 156.525 MHz
Type of emission 16K0G2B
Sensitivity Less than –110 dBm
Adjacent channel selectivity More than 70 dB
Spurious response More than –34 dBm
Intermodulation More than –39 dBm
Blocking More than –20 dBm
Received frequency 1575.42 MHz
Acquisition 72 ch (maximum)
Differential satellites WAAS, EGNOS, MSAS, GAGAN
Dimensions (approximate) 96.2 × 225 (H) mm, 3.8 × 8.9 (H) inch
Weight (approximate) 700 g, 1.5 lb (including cable and mounting bracket)
Cable length (approximate) 10 m, 32.8 ft
NMEA 2000TM Input
059392/904, 060160/416/928, 065240, 126208/996, 129026/029/545

059392/904, 060416/928, 126208/464/993/996/998, 129026/029/038/039/040/041/539/540/545/792/793/794/797/798/801/802/803/805/806/807/809/810/811
NMEA 0183 NMEA Input/Output
4800–38400 bps Input/Output, sentence format (Output: GGA, GNS, GLL, GSA*1, GSV*1, RMC, VTG, GBS, DTM, DSC)

External GPS Input
4800–38400 bps Input, sentence format (GGA, GNS, GLL, RMC, VTG, GBS*2, DTM)

AIS Output
38400 bps Output sentence format
