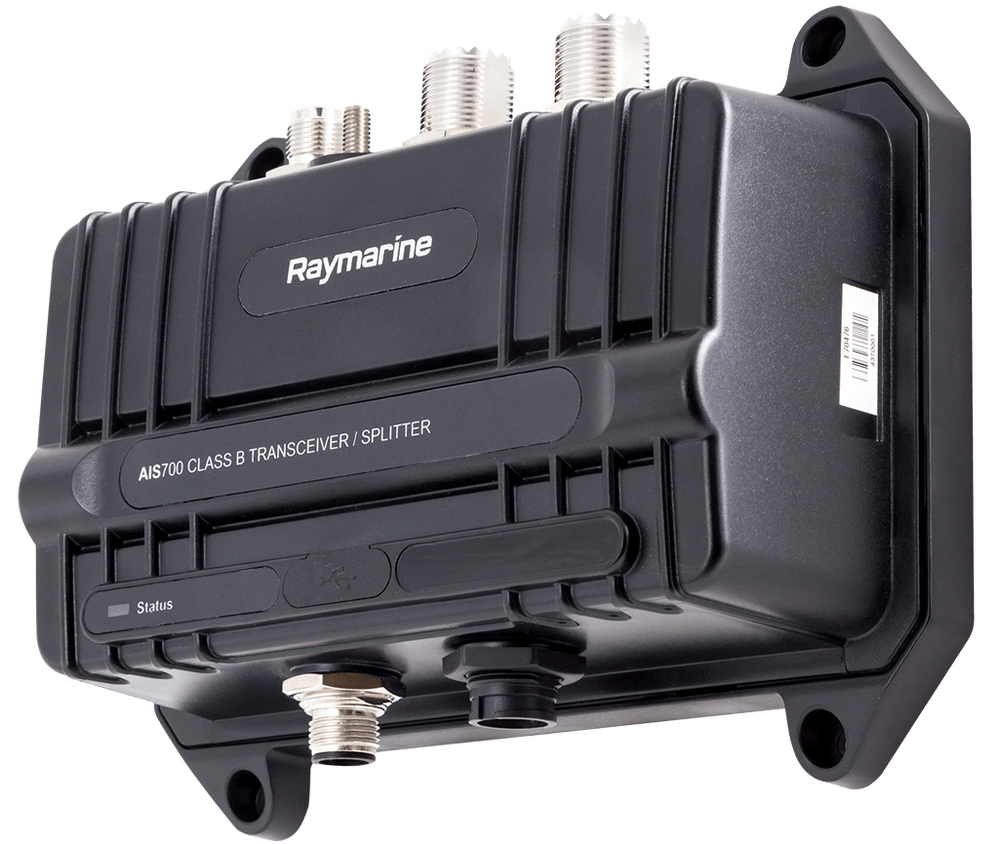

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boat’s information too helping you to be seen on other vessels’ systems.

Features:

  • Full transmit and receive AIS for enhanced situational awareness and safety
  • Latest SO-TDMA networking for longer range and faster performance
  • Built-in antenna splitter simplifies installation with existing VHF radio antenna*
  • NMEA2000, NMEA0183, PC (setup & diagnostics) and SeaTalkng compatible.
  • Software or hardware switchable Silent Mode for enhanced security when needed
Environmental Specifications
Operating temperature -15°C to +55°C
Storage temperature -20°C to +75°C
Water ingress IPX6 and IPX7
Humidity Up to 93% @ 40°C
Power Specifications
Power Supply 12v and 24 nominal
Power Consumption <3W
Peak current 3A
Load Equivalency Number 1 LEN
RS Specifications
DSC Receiver Implemented by time sharing with one TDMA receiver
Receiver 1 band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Receiver 2 band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter band 156.025 MHz to 162.025 MHz (in 25KHz steps)
Transmitter specification To meet IEC 62287-2 relevant sections
Receiver specification To meet IEC 62287-2 relevant sections
Transceiver specification To meet IEC 62287-2 relevant sections
GPS receiver u-blox MAX-M8W
GPS receiver channels 72 channels
GPS Cold start acquisition time 26s nominal
Positional source GPS & GLONASS
AIS performance 5W SOTDMA
Antenna Splitter Specifications
Operating frequency range 156.0MHz to 162.025MHz Transmitting
156.0MHz to 162.025MHz Receiving
Insertion loss AIS RX path 0dB
Insertion loss AIS TX path <1dB
Insertion loss VHF RX path 0dB
Insertion loss VHF TX path <1dB
Power handling AIS port Maximum 5W input
Power handling VHF port 25W input
Switching time RX to VHF TX 10uS Max
Switching time RX to AIS TX 10uS Max
Switching time VHF TX to AIS TX 10uS Max
Switching time any TX to RX 10uS Max
VHF port impedance 50 Ohms
AIS port impedance 50 Ohms
Antenna port impedance 50 Ohms
VHF to AIS port isolation >28dB (both directions)
Minimum VHF input power for switching 400mW
*To share a VHF antenna, the aerial should meet the following requirements (nominally tuned to 159MHz):
Frequency Band 156.025 MHz to 162.025 MHz
VSWR (Voltage Standing Wave Radio) Should not exceed 2:1
Impedance 50 Ohm
Gain 3dBi Max
Connector PL-259
External Connections
VHF antenna connector type SO-239 co-axial
VHF radio connector type SO-239 co-axial
GNSS antenna connector 50Ω TNC co-axial
NMEA2000 DeviceNet male
USB Micro-B
External interface isolation NMEA0183 and NMEA 2000 interfaces to incorporate galvanic isolation from power supply as required by the relevant interface specification.
NMEA0183 interface 1 (MFD connection) NMEA 0183 HS (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). Configurable baud rate. Input to MFD from AIS.
NMEA0183 interface 2 (NMEA0183 instrument connection) NMEA 0183 (IEC 61162-1) compliant, bi-directional, RS422 levels. 4 wire interface (differential signalling). 4 wire interface (differential signalling) Configurable baud rate
USB interface (PC connection) Protocol NMEA 0183 HS (IEC 61162-1) compliant, bi-directional USB port, 38.4 kBaud
