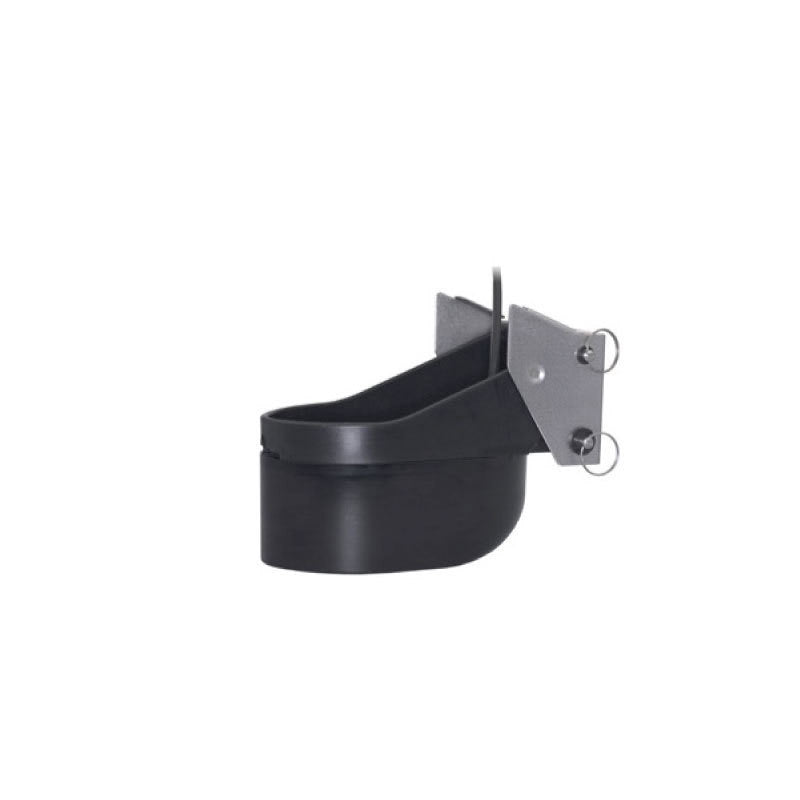

XSONIC AIRMAR TM275LH-W
XSONIC AIRMAR TM275LH-W

XSONIC AIRMAR TM275LH-W

No reviews yet
Part Number:

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 130-210 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers. The TM275LH-W CHIRPS across both high and low frequencies to give you the best of both worlds, with excellent depth range from the lower frequencies as well as greater detail and sensitivity to smaller targets with the higher frequencies.

A unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display.

Transom Mount Transducers

Transom models are best suited for small and trailered vessels where a thru-hull installation is not practical. They are not for use on stepped hull boats or with inboard power.

  • Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading
  • No holes in the hull
  • Great performance at boat speeds below 30 knots
  • Easy maintenance and low-cost replacement

Features

  • Depth & fast-response water-temperature sensor
  • Low—CHIRPS from 42 kHz to 65 kHz
    • 25° to 16° beamwidth
  • High—CHIRPS from 150 kHz to 250 kHz
    • 25° constant beamwidth
  • 123 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Boat Size: 8 m (25’) and above
  • Hull Type: Fiberglass or wood
  • Urethane transducer housing with stainless steel bracket
  • Exclusive Xducer ID® technology

Specifications

  • Hull Deadrise: Up to 28°
  • Acoustic Window: Urethane
  • Weight: 4 kg (8.9 lb)
