Vetus 5 Wiper Control Panel
Vetus 5 Wiper Control Panel
Vetus 5 Wiper Control Panel
Vetus 5 Wiper Control Panel

Vetus 5 Wiper Control Panel

No reviews yet
Part Number:

This panel can control up to 5 wiper motors to run synchronously at high or low speed. Each wiper motor is individually switched, so you can select which wipers are operational. They also feature a combination switch for screen wash/wipe activation, speed selection and interval wipe delay. The wiper motors to be connected must have a 2 speed motor and an automatic parking position. It is optional to connect up to 3 MARBO rain sensors to the control unit. The rain sensor function can be activated by the supplied switch panel and can activate all 5 wipers simultaneously.

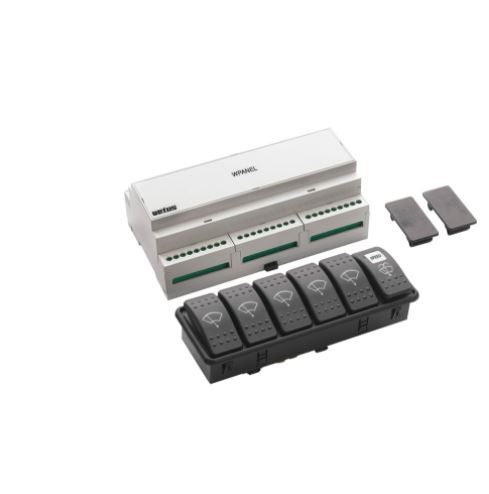

This panel is supplied with

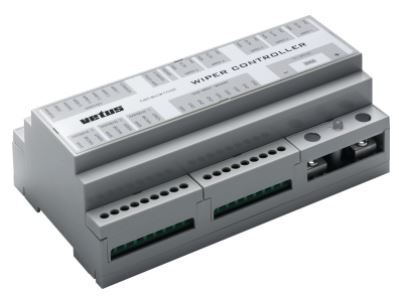

• 1 control unit with electronic overload protection (can be DIN rail mounted)

• 5 wiper motor switches

• 1 combined switch for wash/wipe and speed selection

• 1 mounting plate with room for 6 switches and 2 blind plates


• Available for 12 or 24 Volt D.C. supply

• Power consumption in stand-by mode approx. 10 mA

• Maximum power per wiper motor 120 W

• Internal fuses 10 A each wiper motor, 5 A for screen wash pump or solenoid valve

• Dimensions control panel 49 x 24 x 37,5 mm, control unit 159 x 90 x 58 mm
