Vertical Capstan
Vertical Capstan

Vertical Capstan

No reviews yet
Bulk Item Bulk Item
Part Number:

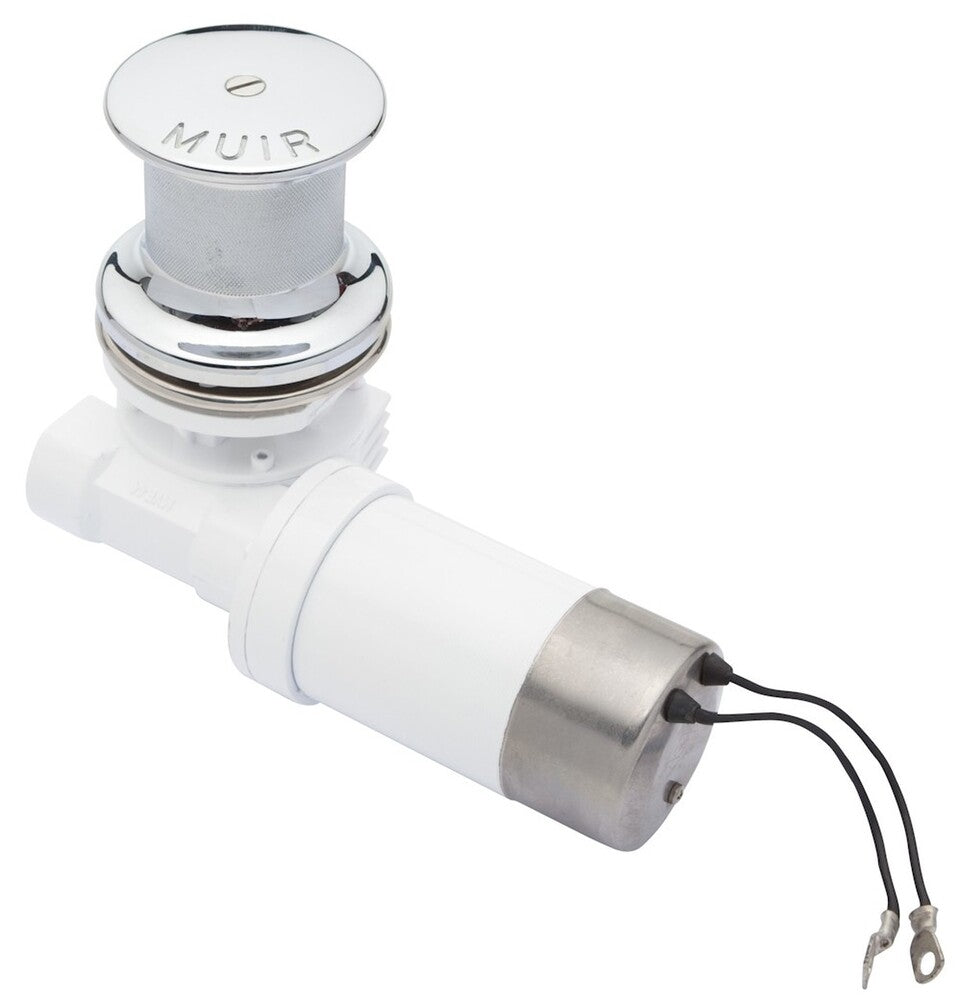

Muir Vertical Capstans provide a solid, reliable performance when mooring and anchoring. Each Capstan is made from marine grade bronze, with a luxury chrome finish, bringing style and performance together with dependability. Capstans are able to be mounted horizontally as well as vertically, making it a versatile unit suitable for many commercial and recreational activities.

Shaft and mounting bolts are marine quality stainless steel, and all Muir Capstans are designed and built in Australia.


Model VC500 VC650 VC850 VC2500
VESSEL LENGTH 5-9m 8-11m 9-14m 14-22m
POWER SUPPLY (DC) 12/24V 12/24V 12/24V 12/24V
MOTOR (WATTS) 400 600 1000 1200
MAX LOAD 115kg/227kg 295kg 386kg 1136kg
WORK LOAD 29kg/57kg 74kg 97kg 284kg
AMPS WORK LOAD 40/80 80/50 80/50 120/75
MAX LINE SPEED 25m/min 20m/min 24m/min 15m/min
CHAIN SIZE (MM) 0 0 0 0
ROPE SIZE (MM) 10, 12 10, 12 10, 14 12, 19
NET WEIGHT 6kg 12kg 16kg DC 25kg

HYD 23kg

*VC2500 is available as a hydraulic unit. Please contact the store for a quote.

Package Includes

  • Vertical Capstan
  • Drive Motor/ Gearbox
  • Deckswitch
  • Circuit Breaker
