No reviews yet
Part Number:

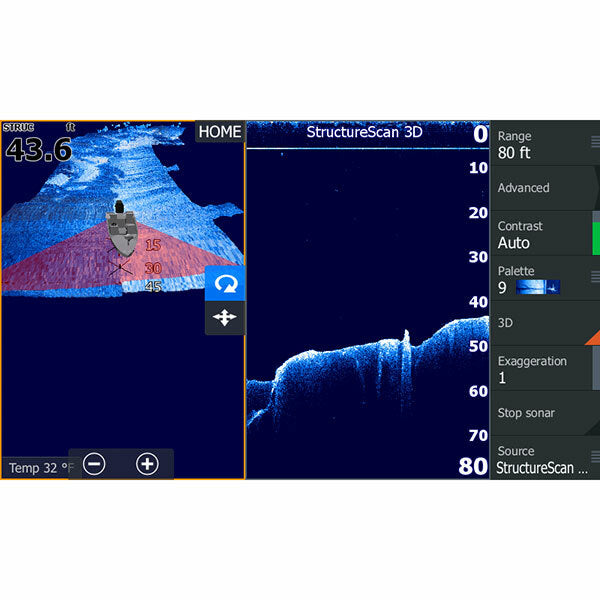

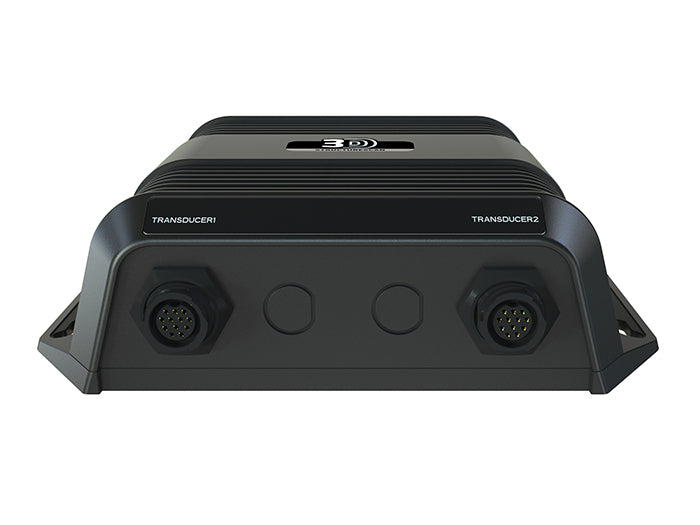

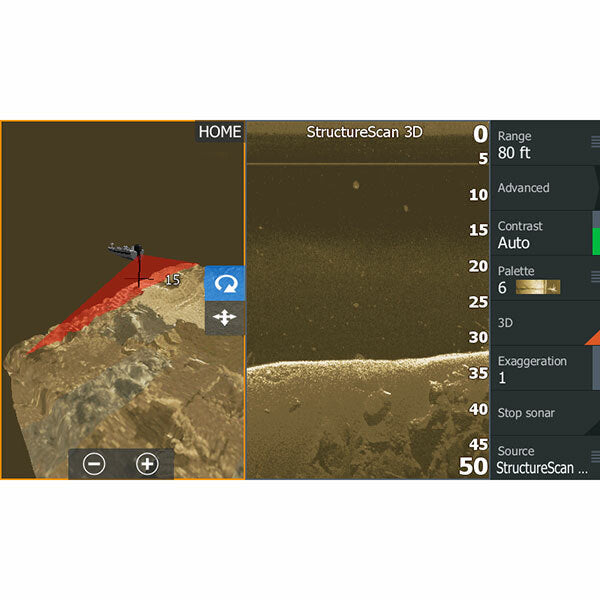

Lowrance StructureScan 3D echosounder maximizes your time on the water with the remarkably clear view of the ocean beneath your boat. Boaters can easily identify fish, structure, bottom contours, diveable wrecks and ideal anchorages thanks to the new Lowrance StructureSCan 3D echosounder. With the high-resolution, 180-degree, three-dimensional view beneath your vessel, anglers gain a better understanding of where fish and structure are located in relation to their vessel. The picture-like, three-dimensional views are displayed on the Simrad NSS evo2 and NSO evo2 echosounders/chartplotters, when used in combination with the SideScan 3D Skimmer transducer and StructureScan 3D module.

Features

  • Unrivaled SideScan Image Clarity
  • High Definition (HD) and Super-Wide 3D Scanning
  • Leading Edge™ Scanning Reference
  • SelectScan™ Target Identification
  • Vertical Enhancement Control
  • Waypoint Overlay
  • Automatic 3D Image Settings
  • Ethernet Connectivity

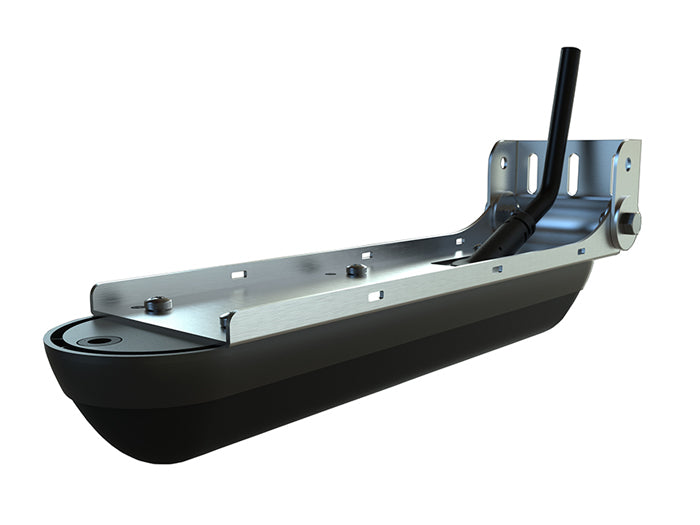

  • Enhanced SideScan Skimmer® Transducer Design
SPECIFICATIONS
Power
Power Consumption Max: .75A, Typical: .60A, Inrush: 4.7A pk
Power Supply (Supply Voltage) 12 vDC

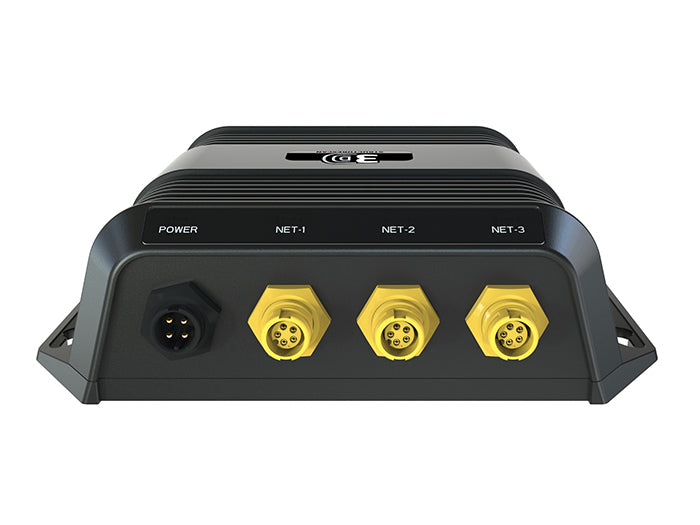

Networking Connectors
Connectors Ethernet
Other
Cable 20 ft/ 6m
Other Features Transmit Power: Max RMS: 500W

Input Power: 10V - 17 VDC
Sonar
EchoSounder Frequencies Enhanced 455 kHz
Technical/Environmental
Product Length [mm] 210
Weight [kg] 1
ECHOSOUNDER MAX DEPTHS
Sidescan Imaging
Max Range: 600 ft/ 183 m
Track Bottom: 35 mph / 56 kph
Mark Objects: 15 mph / 24kph
Optimum Imaging: 2-8 mph / 3-13 kph
Downscan Imaging™
Max Depth: 300 ft/ 92 m
Track Bottom: 35 mph / 56 kph
Mark Objects: 2-8 mph / 3-13 kph
Optimum Imaging: 2-8 mph / 3-13 kph
