Ray 63/73/90/91 Wireless 2nd Station including Wireless Handset and Active Speaker
Ray 63/73/90/91 Wireless 2nd Station including Wireless Handset and Active Speaker

Ray 63/73/90/91 Wireless 2nd Station including Wireless Handset and Active Speaker

No reviews yet
Part Number:

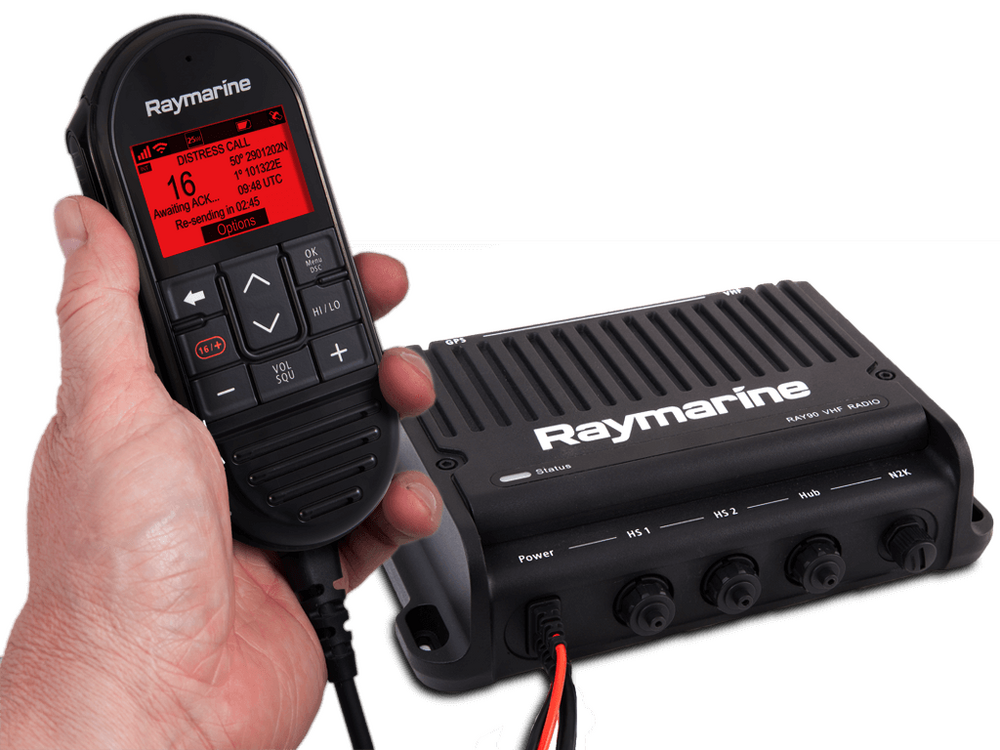

Raymarine’s fixed mount Ray90 modular VHF radio brings multi-station communications to a whole new level of power, performance, and flexibility. The Ray90 is a black-box design with a transceiver that hides out of sight while the ergonomic RayMic handset and remote speaker provide full control of the radio with crystal clear audio.


Now available with an optional wireless handset.

Features:

  • Black box, multi-station capable VHF radio
  • NEW - Wireless handset and active speaker available
  • Wired handset and passive speaker included
  • Expandable to 2 handsets
  • Built-in loudhailer and fog signal generator
  • Optional external GPS
  • Simple NMEA2000 and NMEA0183 Networking

Ray90 is equipped with a powerful 25-watt transmitter and commercial grade electronics for long life and superior performance. Channel scanning, dual-watch, tri-watch and weather alert are standard. Class D Digital Selective Calling radio and integrated GPS makes setting up the advanced safety and calling features easy. Simply input your vessel’s MMSI number during setup and you’re ready to go. For GPS operation the optional GA150 passive GPS antenna is required.

Position Tracking

Use Ray90’s position tracking feature to keep tabs on up to 5 nearby DSC equipped vessels. Their positions are automatically shared with your Raymarine MFD. Keep an eye on other boats in your cruising party, monitor vessels of interest, or manage your local fleet. In Europe the Ray90 supports the ATIS system on navigable inland waterways.

Loudhailer

Ray90’s built-in loudhailer will make you heard on-deck and across the harbour. Connect an optional hailing horn and make your presence known with 30-watts of audio output, plus 2-way talkback. When things get foggy, the loudhailer can also be set to automatically sound required fog signals for power and sailing vessels underway and at anchor.

Waterproof & Ruggedized Ray90’s transceiver unit is cast in solid aluminum for shock and vibration resistance and maximum heat dissipation. RayMic handsets feature super-bright backlighting for easy viewing in all conditions and oversized keys provide a sure grip with easy access to commonly used functions.

Expand Your System The Ray90 system includes 1 RayMic wired handset and a passive speaker kit. Expand your system with an additional RayMic handset and remote speaker. For noisy environments choose the optional active remote speaker. No matter how small or how large your vessel is, the Ray90 all the power and performance you need for essential communications on the water.

General Specifications
Size (HxWxD) Main Unit Height = 63mm (2.48 in)

Width - 235mm (9.25 in) max

Depth 160mm (6.30 in) max excl rear cables
Weight Main Unit 2.6 Kg (5.7 lbs)
Environmental
Water Integrity Complies with IPX6 & IPX7

Complies with EN60945
Operating Temperature Range -25°C to 55°C
Storage Temperature Range -25°C to 70°C
Humidity up to 95%
Electrical
Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.101)
Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected Rechargable Lithium Ion 2000mAh battery 12V DC. Reverse polarity and over voltage protected
Operating Voltage Range 9V DC to 16V DC 9V DC to 16V DC
Current Consumption Less than 6A at High Power (13.6V)

Standby: 600 mA

Receive: 2 Amps
1 Amp Nominal Less than 6A at High Power (13.6V)

Standby: 600 mA

Receive: 2 Amps
Fuse requirements Inline fuse = 1.25A | Thermal Breaker = 1.25A
Charge Type Wireless Inductive Charge
Transmitter
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 – 157.425 MHz

155.500 to 161.425 MHz Private channels
Frequency Stability + / - 1.5 ppm
Channel Spacing 12.5 kHz
Power Output High Power = 25 Watt

Low Power = 1 Watt
Spurious emmission Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation +/- 5kHz
Antenna port impedance 50 ohms typical
Receiver
Receiver Type Double Conversion Super Heterodyne
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 – 157.425 MHz

155.500 to 161.425 MHz Private channels
Wireless Frequency 2.4GHz 2.4GHz
Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity Less than -2 dBµ EMF
Hum & Noise Better than -40 dB
Audio Distortion Less than 10%
Receiver Sensitivity Distance -119 dBm (0.25uV)@12 dB SINAD ← Typical

Local -110 dBm (0.7uV)@12 dB SINAD ← Typical
Adjacent Channel Selectivity More than 70 dB
Spurious Response Rejection More than 70 dB
Inter Modulation Rejection More than 70 dB
Speaker (Active & Passive)
External Passive Speaker Power 5W (4Ω) / 2.5W (8Ω) (Passive) 5W (8Ω) (Acitve)
External Passive Speaker Power 5W (4Ω) / 2.5W (8Ω) (Passive) 5W (8Ω) (Acitve)
GPS
Number of channels 72
Cold Start 29s
Receiver IC Sensitiv
