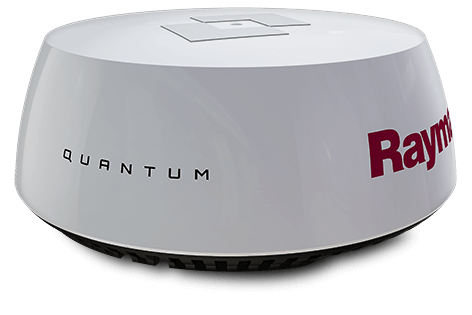

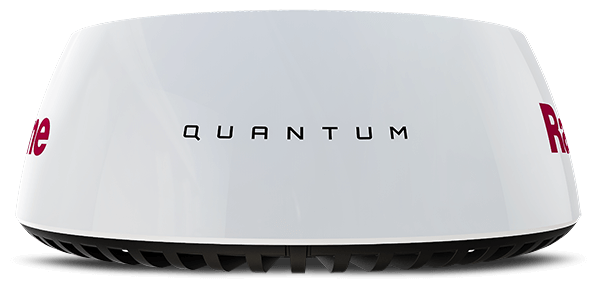

Raymarine Quantum™ Wireless CHIRP Radar


Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption. Superior Radar Imaging FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

  • Quantum Radar
  • Ordinary magnetron radar

CHIRP Pulse Compression

  • Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
  • CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges 1 Day marker target at close range

Small Target Detection

Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns. 1 Quantum detects the small kayak very close to the waterfront bulkhead

Immediate Awareness

Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation

  • Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
  • Quantum’s small diameter power cable is easy to route through tight spaces
  • Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables

Energy Efficient and Lightweight Design

  • Weighs 50% less than traditional magnetron radars
  • Safe Emissions thanks to Quantum’s low power solid state radar transmitter
  • Very low power consumption (17 Watts transmit and 7 watts standby)
  • Extended vessel battery life when under sail
General Specifications
Nominal Supply Voltage 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
Networking Wi-Fi or wired Ethernet (RayNet)
Antenna type Patch Array
Power consumption Transmit mode 17W; standby mode 7W; sleep mode 2W
Range Scales From 1/16 to 24 nautical miles
transmit frequency 9354 to 9446 MHz
Peak power output 20w
Duplexer Circulator
Pulse Widths 40 ns to 14.7 μs
CHIRP Lengths 400 ns to 20 μs
CHIRP Bandwidth Up to 32 MHz
IF Bandwidth 26 MHz
Noise Less than 4 dB
Max. Range Scale from 1/16 to 24 nautical miles
Beamwidth (nominal) 4.9 horizontal and 20 vertical
Polarisation Horizontal
Waterproofing IPX6
Weight 5.6 kg (12.3 lb)
Networking
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization)
OUTPUT: GPS (for VHF Distress and DSC). Waypoint, Routes, and XTE for Autopilot. Waypoint and Route sharing between Element displays
SeaTalkng Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi WiFi - 802.11 b / g / n
Other Specifications
Cartography Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping Raymarine RealBathy and Navionics SonarChart Live
Waypoint / Routes / Tracks 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
External Memory 1 x microSD slots
SeaTalkNG Requires A06045 DeviceNet female (F) adapter cable - 400mm
USB 1 x USB microB rear - 0.5A charging, external storage device or RCR-SD/USB Accessory (A80440))
Wi-Fi WiFi - 802.11 b / g / n
BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5
[Available in future Lighthouse 3 software update]
NAVIGATION
Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]
Find out more about our cartography options
Tides & Currents Requires Navionics or *C-MAP
Waypoint / Routes / Tracks 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal 4GB Solid State
External 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
OTHER
Languages 14
Conformances NMEA 2000 certification: Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210
