With one Panoptix Forward transducer, you can actually see the bottom, structure and fish swimming around in front of your boat — in real time; even while stationary. You get 2 impressive views: LiveVü Forward and RealVü 3-D Forward.
LIVEVÜ FORWARD
Updates the entire view with a single ping and has a more "live video" look, providing real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small baitfish and large target fish swimming around, even your lure as you reel it in.
REALVÜ 3-D FORWARD
Updates a slice of the 3-D volume with each ping and take 1 to 4 seconds to update the entire volume. It shows the bottom and fish in the water column coming toward the boat. It sweeps forward, and the history on screen is only one sweep.
All-seeing is Believing
Garmin is the first to bring Panoptix sonar imaging to your boat. Panoptix all-seeing sonar is unlike anything you’ve ever seen on the water. It gives you the ability to see all around your boat in real-time. You can see fish in the water column in 3-D. You can also see your bait cast into the water and watch it as you reel it in. You can see fish swimming in front of or below your boat. You can even see them chase your lure. But to truly appreciate Panoptix, you have to see it. Transducer trolling motor and transom mounting kit included¹.
¹The forward-facing transom transducer should be mounted in a location that is out of the water at speeds over 32 km/h (20 mph). If located below the water line, cruising speeds over 40 km/h (25mph) should be avoided. The transducer can generate strain and water spray at higher speeds and can cause the transducer element to rotate in the mount. Mount the transducer to a secure (robust) area of the boat. Consider the placement to avoid damage to boat. If you have any doubts, contact a professional marine installer.
General
Frequency | 417 kHz |
---|---|
Power | 144 W |
BeamWidth | 120°x60° Max |
Maximum Depth | 300 ft. Down; 300 ft. Forward |
Depth/Speed/Temperature | Depth |
Number of Pins | Ethernet |
Cable Length | Power Cable: 15 ft.; Ethernet Cable: 30 ft. |
Supported DeadRise/Transom Angles | 0°-70° transom |

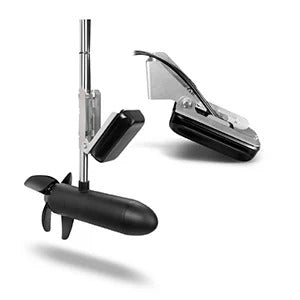

In the Box
- PS31 forward looking transducer (integrated 30 ft network cable, 15 ft power cable)
- Trolling motor mount
- Transom mount
- Split ring RJ45 connector
- Documentation
