P66 Transom Mount
P66 Transom Mount

P66 Transom Mount

No reviews yet
Part Number:

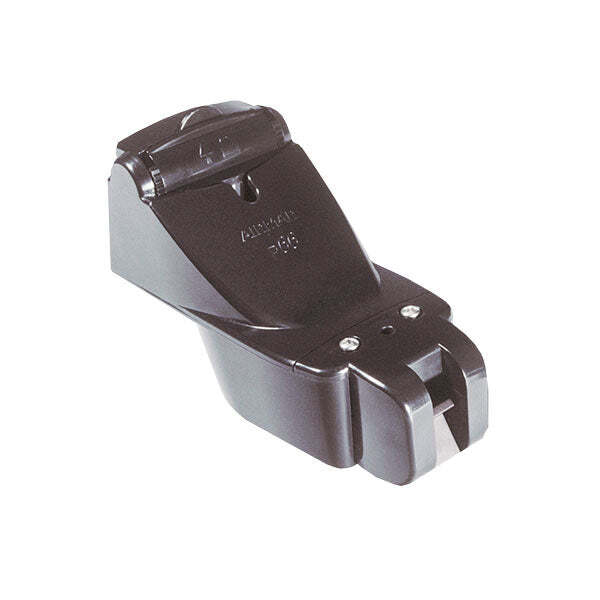

Raymarine P66 Transom-Mount Transducer provides depth, speed and temperature in one package; producing focused beams that highlight detail in water columns and on bottom surface.


  • TRIDUCER® Multisensor with patented noise-suppression system provides 5 to 8 knot improvement over standard construction
  • Oversized ceramic element produces focused beams highlighting detail in water column and on bottom surface
  • Reversible wedge allows mounting to transom angles from 2 - 20°
  • Integral release bracket protects against impact damage, allows transducer removal for storage and transport
  • Unitary bearings inside paddlewheel hub assure exact alignment and minimal rotational friction
  • Paddlewheel assembly easily removed for inspection, cleaning, and replacement
  • Chemical and impact resistant plastic housing
  • Suitable for boats up to 40 ft. in length
  • Compatible with Raymarine DSM300, DSM30 and CP300


  • Raymarine Model No. E66054
  • Mount: Transom
  • Housing Material: Plastic
  • Cable: 30 ft.
  • Frequency: 50 / 200 kHz
  • Cone: 45° (50 kHz) / 11° (200 kHz)
  • Power: 600 Watts RMS
  • Hull Deadrise (transom): 2 - 20°
  • Maximum Depth Range: 800 - 1200 ft. (50 kHz) / 400 - 700 ft. (200 kHz)
  • Dimensions: 3.92" H x 2.76" W x 6.12" L
