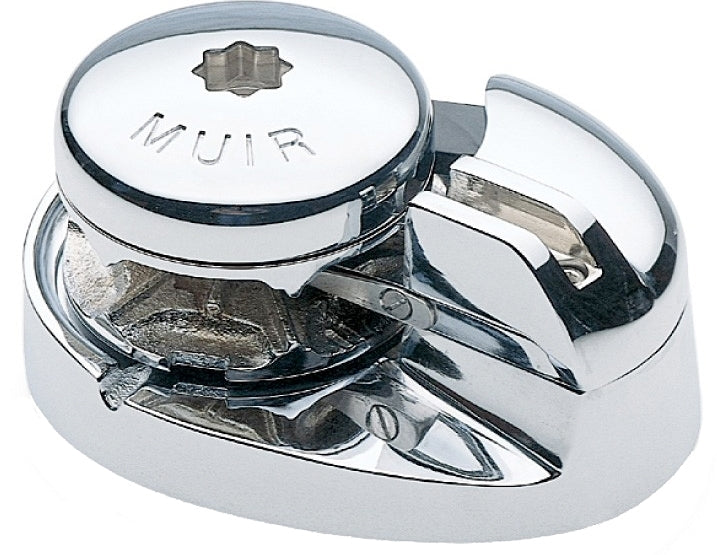

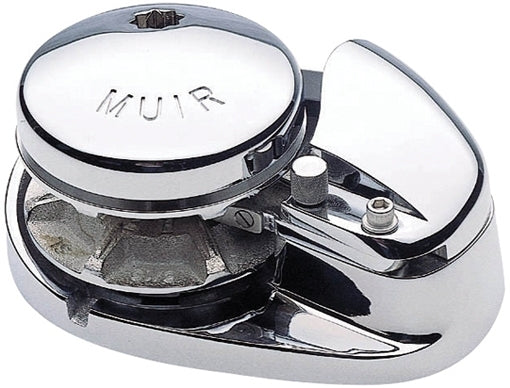

bulky The Storm Series of Vertical Winches from Muir demonstrates the latest in windlass technology. Built for vessels 5 to 20 metres, and made from marine grade 316 stainless steel, the Storm series caters to all anchor winching needs.

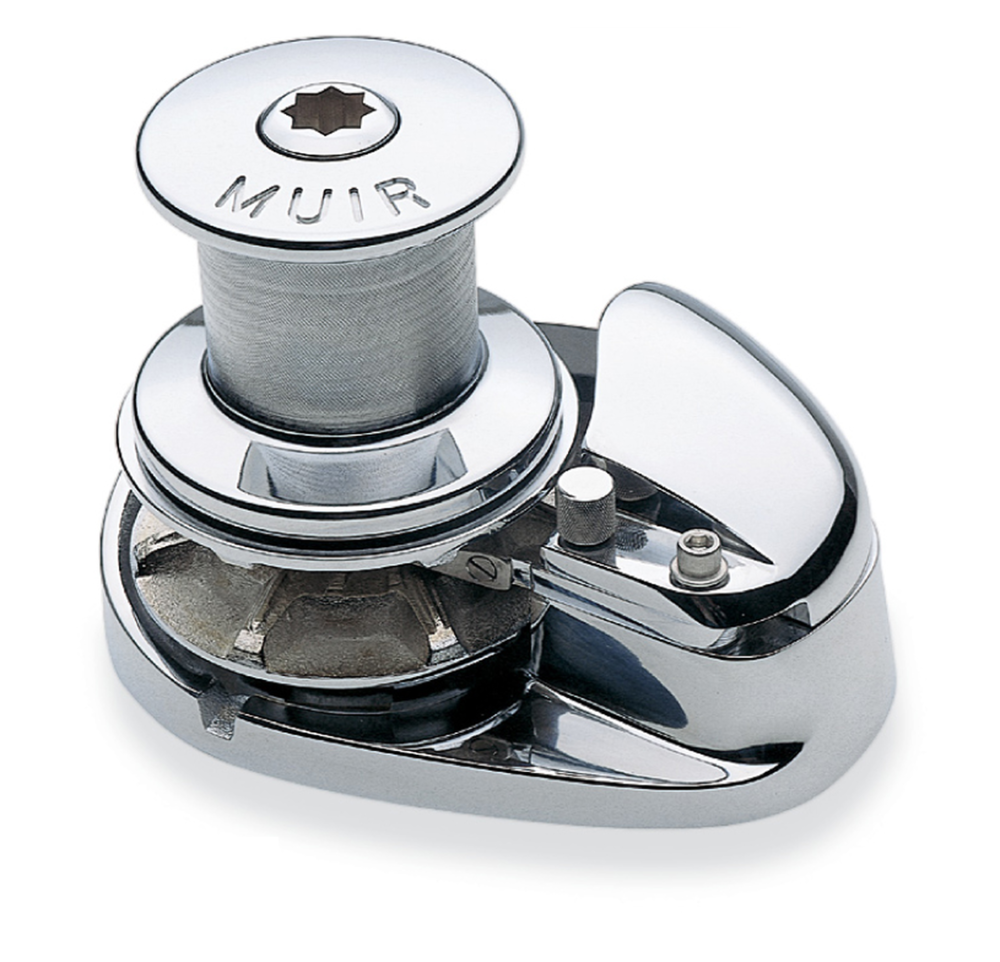

All Storm winches feature a Rope Control Management System, and each model is available with an optional Capstan, which runs independently to the gypsy. The cone clutch allows for manual freefall.

All Muir winches are made and designed in Australia. VCR Models include Capstan.


Model VR600 VR850 VR1250 VR2200 VR2500
Vessel Length 5-9m 8-11m 10-13m 12-15m 14-20m
Power Supply 12/24v 12/24v 12/24v 12v/24v 12/24v
Motor (Watts) 600 600 1000 1200 1200
Hyd Pressure* N/A N/A 8MPa 10MPa 10MPa
Hyd Flow* N/A N/A 15L/min 15L/min 20L/min
Max Load 300kg 386kg 500kg 1000kg 1136kg
Work Load 75kg 96kg 125kg 150kg 284kg
Amp Work Load 40/80 80/50 100/60 120/75 120/75
Max Line Speed 25m/min 24m/min 15m/min 15m/min 13.5m/min
Chain Size (mm) 6, 7 6, 8, 10 6, 8, 10 6, 8, 10 8, 10, 13
Rope Size (mm) 12 12, 14, 16 12, 14, 16 12, 14, 16 14, 16, 19
Net Weight** 12kg 15kg DC: 16.5kg

HYD: 15.5kg
DC 23.5

HYD: 22.5kg
DC: 40kg

HYD: 38kg

*Models VCR and their respective capstan units are all available with Hydraulic operation. Please contact your closest store for a quote.

**Weight is without the optional Capstan.
Package Includes
  • Rope Control Management System
  • Clutch Handle
  • Deck Bolts
  • Installation Guide
  • Cone Clutch Drive
  • Deckswitch*
  • Circuit Breaker
*VR600 and VFF600 come with a reversing switch kit instead of a deckswitch.
