Manson Anchors - Racer Anchor - Aluminium

No reviews yet
Bulk Item Bulk Item
Part Number:

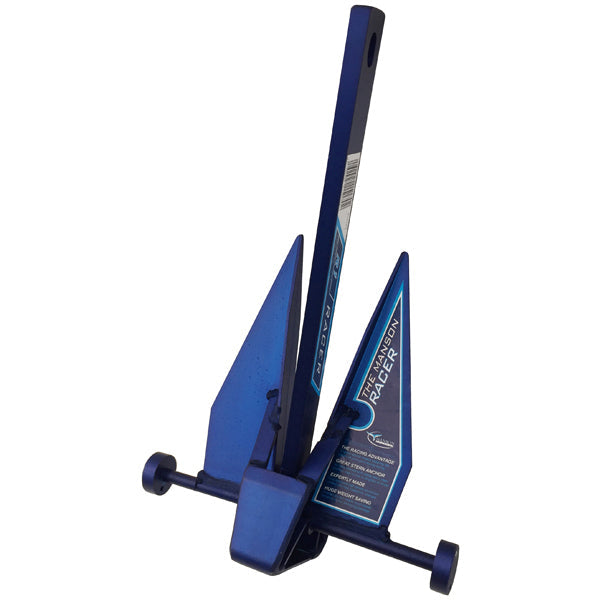

The Manson Racer is the first anchor on the market specifically tailored for racing yachts of all sizes. Built using high tensile aluminium, it is fully welded and anodized ready for use. The Manson Racer is an effective anchor with great weight-saving potential. The Manson Racers' hard-wearing stability discs are designed to reduce the width of the lower balance bar. The balls are designed to encourage the anchor to set faster and resist rotation whilst embedded in the seafloor.

Having a shorter bar means the anchor is easier to stow in lockers or anchor wells. The balls serve a secondary purpose to help avoid damage to your vessel by the often sharp ends and edges of the bar. The black balls are made from hardwearing and heat-resistant plastic. The Manson Racer is also considered a great option as a stern anchor. Manson Anchors also offer an optional padded, polyester lined bag with two interior pockets for chain and rope.

Features:

  • High-Tensile Anodised Aluminium - The Racer Anchor is specifically tailored for racing yachts of all sizes.
  • Reduced Weight - Due to being fabricated from aluminium the reduced weight assures easier handling and storage along with great weight-saving potential.
  • Stability Disc - Hard-wearing stability discs reduce the width of the lower balance bar as well as encourage the anchor to set faster and resist rotation when embedded in the seafloor.
  • Help Prevent Yacht Damage - The Aluminium stability disc also help to prevent damage to your vessel from contact with the commonly sharp edges of an anchor.
  • Padded Bags - Padded Bags (sold separately) protect your vessel from the stowed anchor and have two interior pockets to help protect the anchor from the chain.
Part No. Length
A
(mm)
Width
B
(mm)
Weight
(kg)
Fluke Length
C
(mm)
Fluke Split
D
(mm)
Fluke Width
F
(mm)
Approx. Boat Length
(m)
8553247 430.0 260.0 1.0 250.0 85.0 115.0 3.0 - 4.0
8553248 490.0 280.0 1.2 275.0 90.0 115.0 4.0 - 6.0
8553249 545.0 315.0 1.5 310.0 100.0 115.0 6.0 - 7.0
8553250 660.0 380.0 3.4 375.0 120.0 155.0 7.0 - 9.0
8553251 725.0 420.0 3.6 410.0 130.0 155.0 9.0 - 10.0
8553252 800.0 520.0 4.5 460.0 170.0 155.0 10.0 - 12.0
8553253 890.0 615.0 11.0 545.0 180.0 185.0 12.0 - 14.0
8553254 985.0 730.0 12.0 575.0 190.0 185.0 13.0 - 14.0
8553255 1080.0 755.0 15.0 635.0 210.0 235.0 14.0 - 15.0
8553256 1175.0 830.0 16.0 700.0 230.0 235.0 15.0 - 16.0
