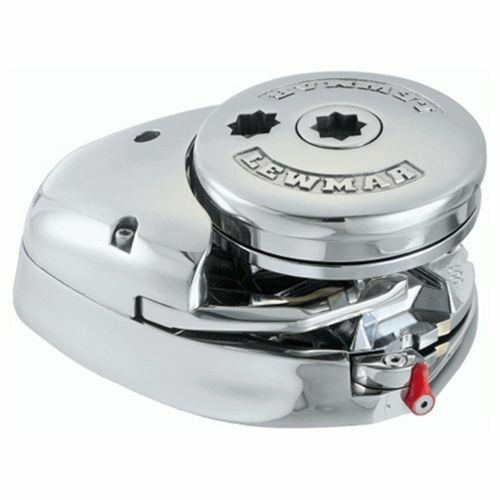

Lewmar Vertical Anchor Winch V1
Lewmar Vertical Anchor Winch V1

Lewmar Vertical Anchor Winch V1

No reviews yet
Bulk Item Bulk Item
Part Number:

The V series of vertical windlasses features an industry-leading external deck unit manufactured from precision cast 316-grade stainless steel. The V1, V2, and V3 are supplied with a rope/chain gypsy accepting 8mm or 10mm short link chain (model dependent) and 12 to 16mm three-strands or eight plait medium lay nylon rope (12mm and 16mm only). The V1, V2, and V3 are fitted as standard with the Fall Safe anchor lock system preventing accidental anchor deployment. As an option, the V1, V2, and V3 are available with a manual recovery winching system for use in the event of power loss. (V1 including manual override)


  • Cast 316 grade stainless steel external unit
  • Dual direction motor
  • Combination rope/chain gypsy
  • Heavy-duty worm drive motor
  • Cone clutch for easy release
  • Chain counter ready
  • For boats 7m to 14m
  • 3-year warranty
Part Number 8133685
Model V1
Watts 700
Volts Standard 12
Chain Standard 8 mm
Rope 12-16 mm
Max Pull 454 kg
Work Load 113 kg
Max Chain Speed 19 m/min
Weight 19 kg
Boat Size 9-12 m
