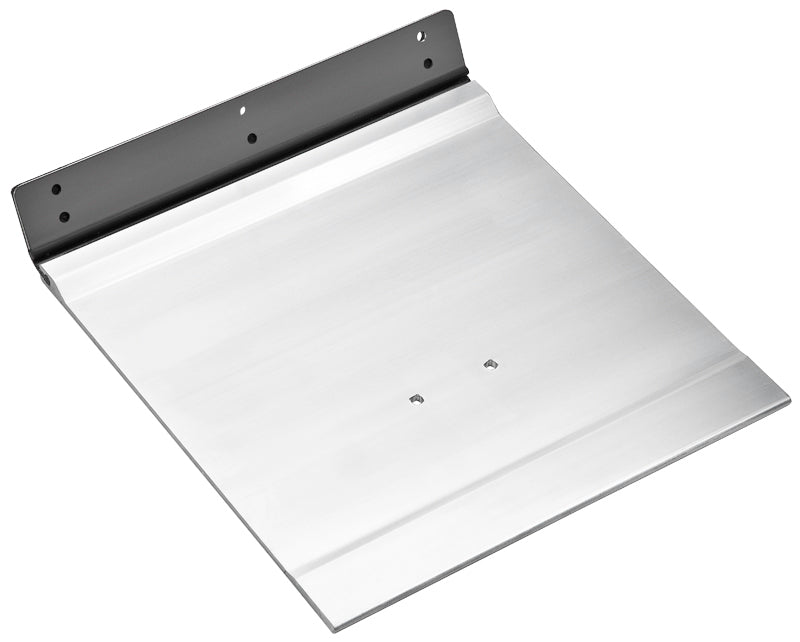

Aluminium Trim Tabs
The Lectrotab Aluminium alloy trim tabs are uniquely designed to meet the needs of aluminium hulled boats and are an economical option for all boats. All aluminium alloy tabs are fabricated with an extremely strong "no break" polypropylene hinge. The tabs are made of marine grade 6005-T5 aluminium alloy materials that is equivalent in strength to 10 gauge stainless steel. All aluminium tabs are sealed with a corrosion resistant epoxy coating.

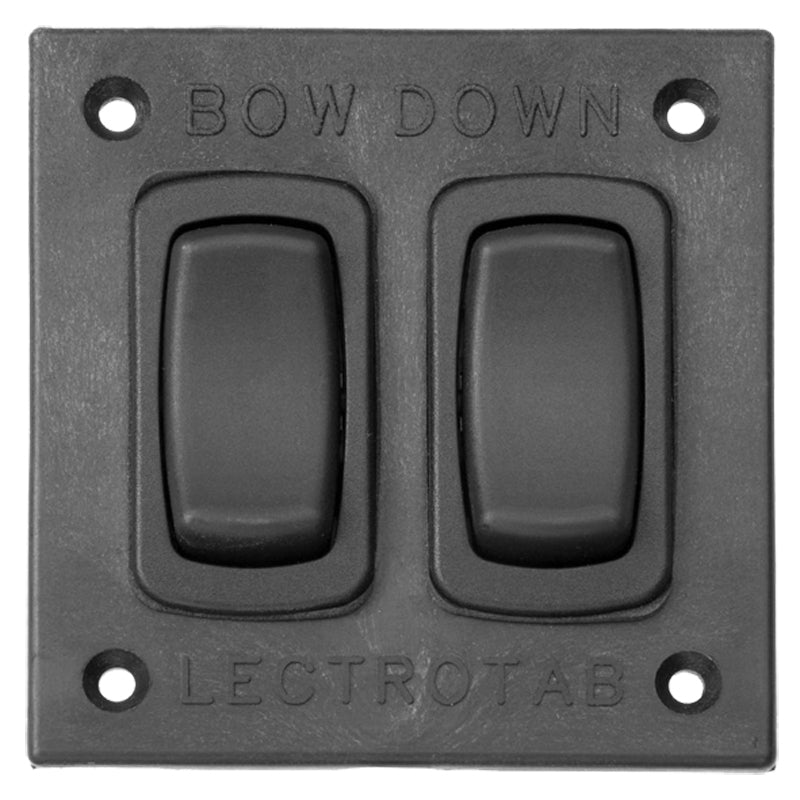

Standard Switch Assembly
This kit comes with the Lectrotab Standard switch assembly. The rocker switch performs all standard trim tab control functions. They are specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. The gasket sealed switch is designed to prevent water entry. The control switch is self-contained and does not require an additional control box. Dimensions: 80mm x 83mm.

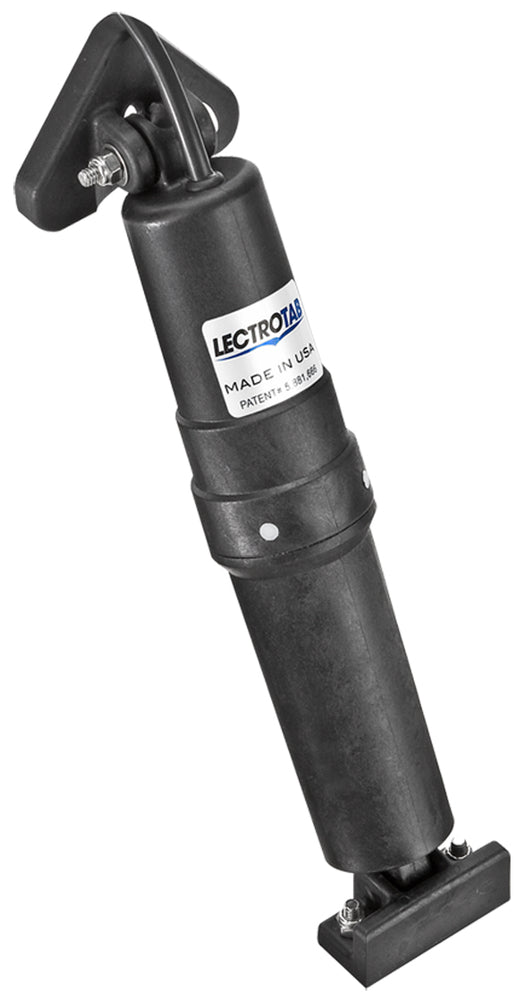

Standard Actuators

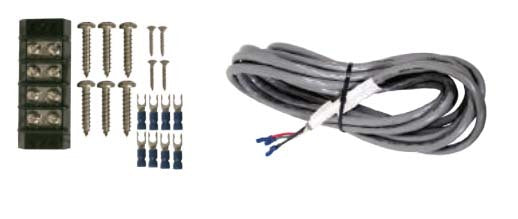

The kit also includes mounting hardware, interconnecting wire and the Standard actuators (9 6/16"). The Standard actuators are precision engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. Actuators come in 12V DC 2 1/4" stroke with 8 second recommended stroke time.
*Please select the trim tab size you require as part of the kit.
The standard switch comes with two years warranty.
The standard actuators comes with seven years warranty.
