No reviews yet
Part Number:

Stainless Steel Trim Tabs

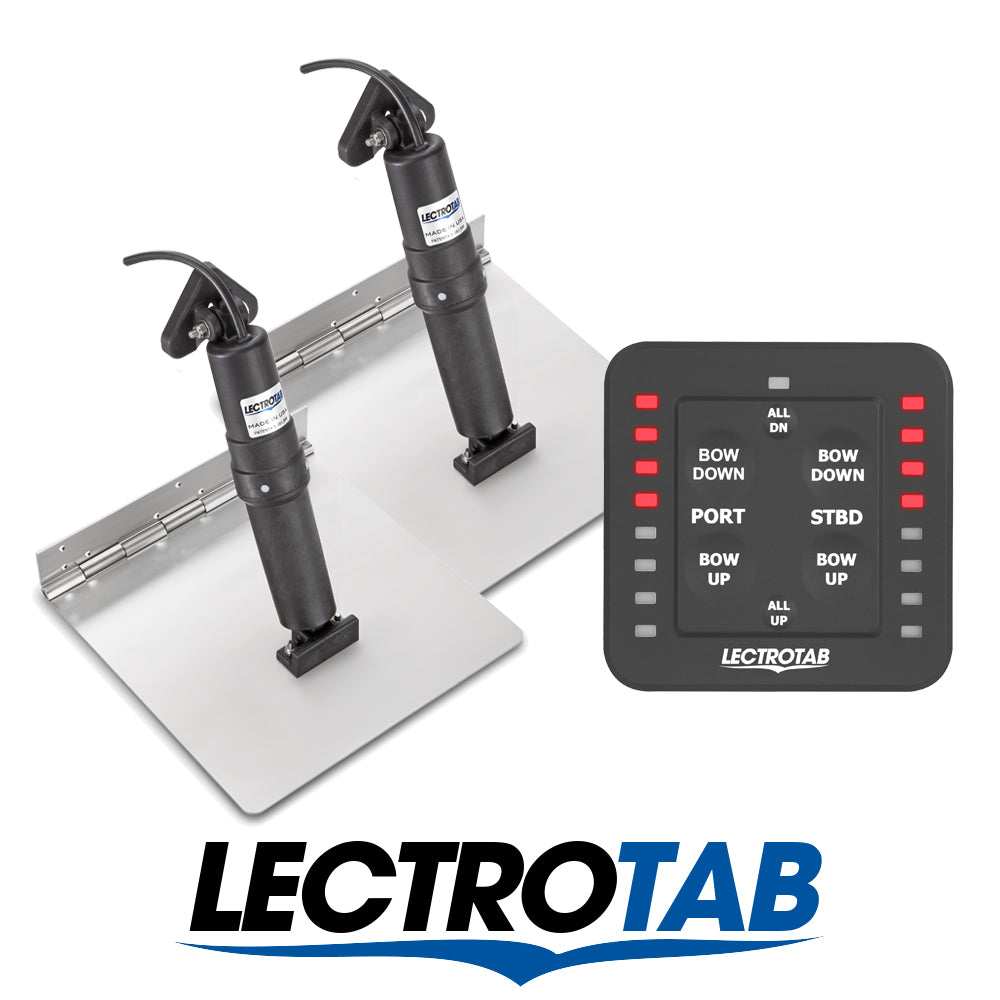

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. The design eliminates the need for welding. The tabs are made of corrosion resistant 12 gauge, 304 stainless steel.

One Touch Leveling Control

The kit comes with the Lectrotab One Touch Leveling Control that features Microprocessor based trim tab control with LED tab position indicators, single button press to move both tabs up or down simultaneously and automatic return to last tab position if ignition key is turned off and back again. It is completely sealed, waterproof and will not deteriorate in sunlight. Automatic tab retraction and calibration with key or accessory switch off. No external power module required for single or dual actuator per tab systems. LED tab position indicators dim automatically in darkness and brighten in sunlight. Adjustable programming features located on back of specification sheet. Operates on 12 or 24 volt dc systems. The Lectrotab One Touch Leveling Control can be used as a single station or can handle up to 6 stations in constant communication with each other (SR communication cable required). Dimensions: 77mm x 77mm.

Standard Actuators

The kit also includes mounting hardware, interconnecting wire and the Standard actuators (9 6/16"). The Standard actuators are precision engineered to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. Actuators come in 12V DC 2 1/4" stroke with 8 second recommended stroke time.

*Please select the trim tab size you require as part of the kit.

The One Touch Leveling Control comes with two years warranty.

The Standard actuators come with seven years warranty.
