Inline Vertical Capstan
Inline Vertical Capstan
Inline Vertical Capstan
Inline Vertical Capstan

Inline Vertical Capstan

No reviews yet
Bulk Item Bulk Item
Part Number:

Muir Inline Vertical Capstans provide efficient, reliable performance in a flexible and lightweight package. The Capstans are built with a single piece integrated gearbox/motor assembly which provides increased power and speed not normally seen in conventional setups. These capstans are able to be mounted horizontally as well as vertically, making it a versatile unit suitable for many commercial and recreational activities. Each Capstan is made from chrome plated bronze and features a knurled finish to increase grip.

Shaft and mounting bolts are marine quality stainless steel, and all Muir Capstans are designed and built in Australia.

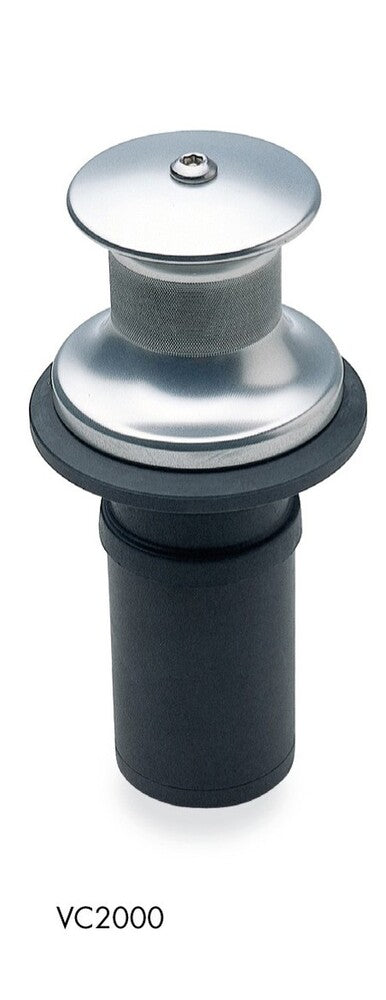

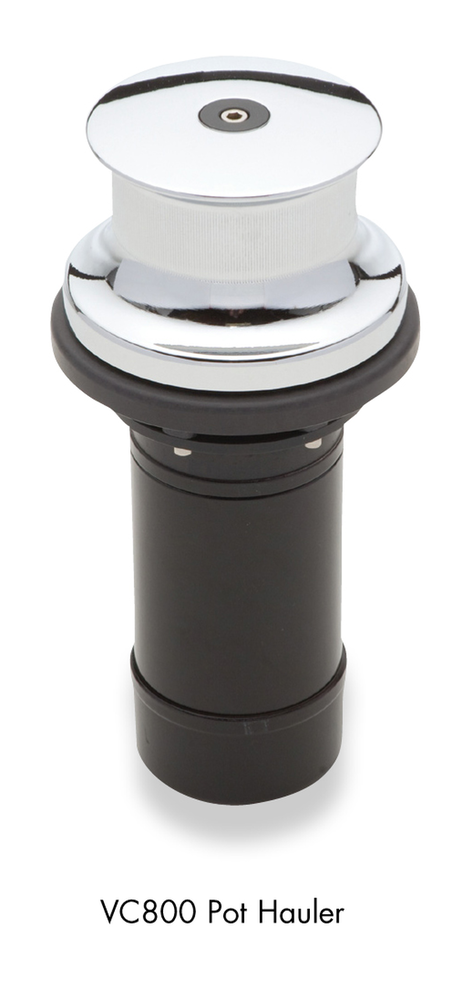

MODEL VC800 VC2000
VESSEL LENGTH 8-11m 11-28m
MOTOR (WATTS) 600 1000
MAX LOAD 180kg 1090kg
WORK LOAD 36kg 235kg
AMPS WORK LOAD 48/12 43/24
MAX LINE SPEED 39m/min 10m/min
ROPE SIZE (MM) 22 22

Package Includes

  • Vertical Capstan/ Drive Motor/ Gearbox unit.
  • Deckswitch
