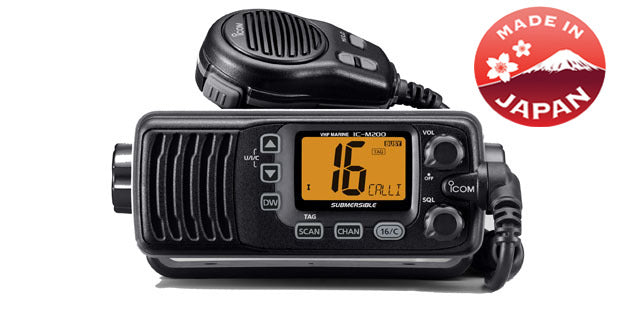

ICOM IC-M200 VHF Marine Radio
ICOM IC-M200 VHF Marine Radio

ICOM IC-M200 VHF Marine Radio

No reviews yet
Part Number:

ICOM IC-M200 VHF marine radio is a well designed, compact marine transceiver that has a powerful front mount speaker delivering loud and clear audio even in a noisy maritime environment. Functional button layout combined with a large, easy to see LCD display makes for ease of operation. Channel selection is also located on the handset. Instant access button for Channel 16 and call channel.

ICOM IC-M200 features:

  • IPX 7 waterproofing rating which withstands 1 meter depth of water for 30 minutes
  • Large and easy to see LCD
  • Built-in low voltage indicator
  • Dual-watch and tri-watch function
  • Priority scan and Normal scan
  • AquaQuake water draining function to keep optimal clarity at all times.
SPECIFICATIONS
GENERAL
Frequency range TX
156.025 - 162.000 MHz

RX
156.025 – 162.025 MHz
Usable channels INT, USA, CAN channels
Type of emission 16K0G3E (FM)
Power Supply Voltage 13.8V DC Nominal
(11.7V - 15.9V DC)
Operating temperature range –20°C to +60°C
Antenna impedance 50 Ω
Dimensions
(W x H x D)
(projections not included)		 153 x 67 x 133 mm
Weight (approximate) 790g; 1.7lb
TRANSMITTER
Output power
(Hi/Low)		 25W (High Power)
1W (Low Power)
Max. frequency deviation ±5 kHz
Frequency stability ±5 ppm
Spurious emissions Less than -70dBc (High Power)
Less than -56dBc (Low Power
Adjacent Channel Power More than 70dB
Audio Harmonic Distortion Less than 70 dB
Residual Modulation More than 40 dB
RECEIVER
Interface Frequency 1st - 21.7 MHz
2nd 450 kHz
Sensitivity –14dBμ typ. (at 12dB SINAD)
Squelch Sensitivity Less than –14dBμ
Adjacent Channel Selectivity 75dB Typical
Spurious Response 75dB Typical
Inter-modulation 75dB Typical
Hum and Noise More than 40 dB
Audio Output Power 4.5W Typical
(at 10% distortion with a 4Ω load)
