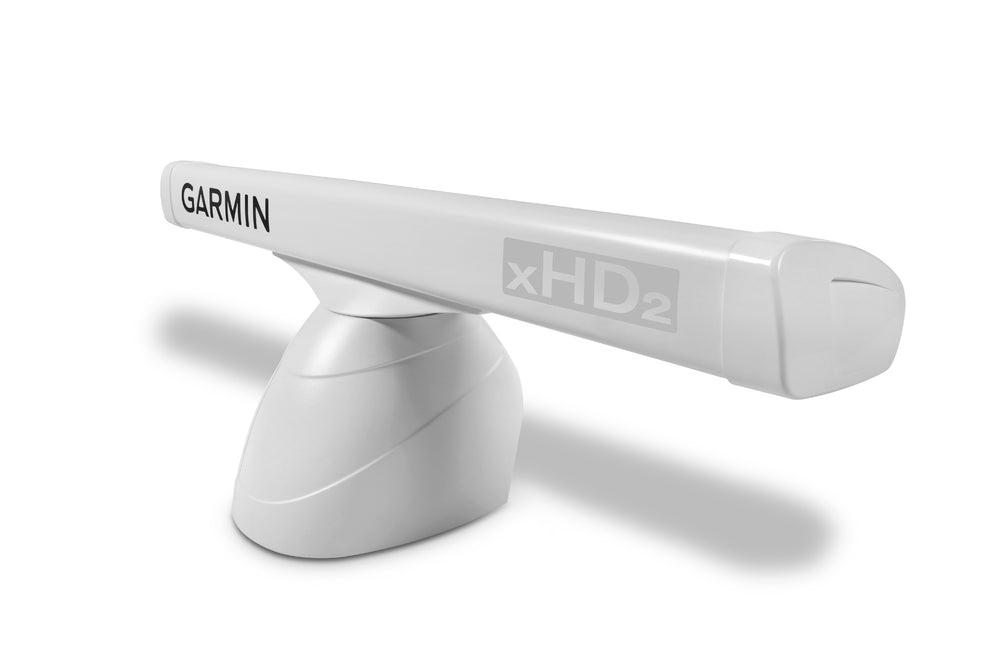

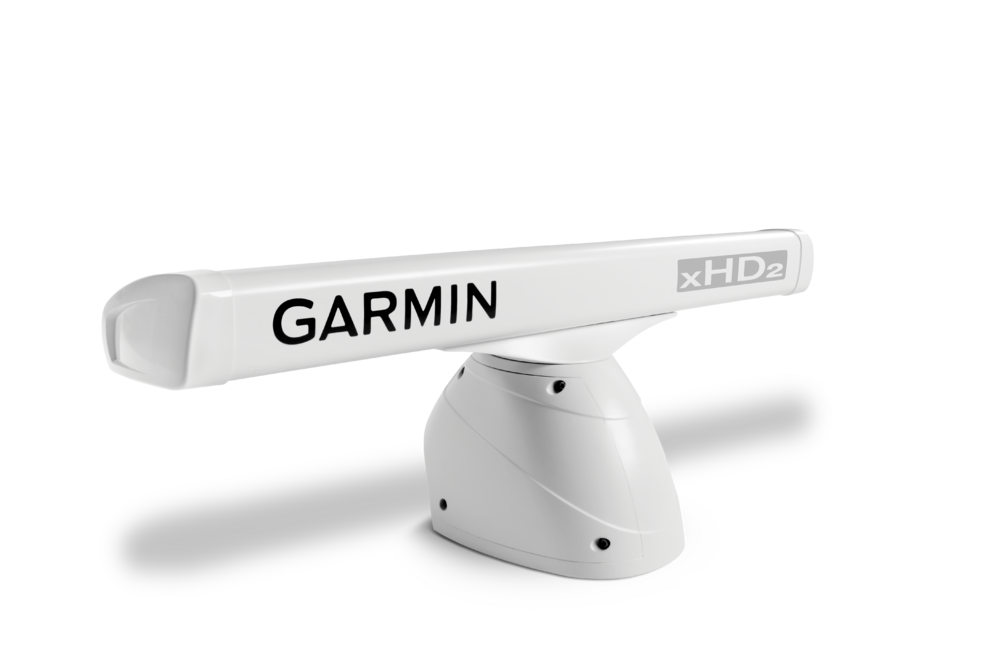

1.2 METRE OPEN-ARRAY RADAR WITH 12 KW OF POWER

This high-definition open-array radar is perfect for cruising and fishing offshore, overnight and in foggy, limited or no-visibility conditions — especially on yachts and sport fishing boats under 1.2 metres.

  • Serious seafarers like you need serious range — up to 72 nautical miles (133 km).
  • See targets in incredible detail, even at a distance.
  • Easily see what’s close and far away with dual-range radar.
  • Don’t waste time fussing with complex settings. This radar is easy to install.
  • Say goodbye to noise pollution. This radar rotates quietly.

High-Powered Radar

This open-array radar delivers 12-kW transmit power and clear echo definition at all ranges. It has rotation speeds of 24 and 48 RPM with a max range scale of 72 nautical miles (133 km).

High-Resolution Radar

The 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out targets at a distance, while 8-bit true colour imagery enhances target separation.

Intuitive Operation

This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.

Pulse Expansion

Increase the duration of the transmit pulse, which helps maximise the energy on targets. This provides larger target size on the chartplotter.

Auto Bird Gain

Locate flocks of birds at the water’s surface where baitfish are also likely to be found.

Echo Trails

A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.

Dual Range

Single radar antenna is capable of providing split-screen images on your chartplotter for both close and long range.

Dual-Radar Support

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

Dynamic Auto Gain

Gain automatically adjusts levels to optimum settings for harbors, nearshore and offshore in open waters.

Dynamic Sea Filter

Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

Radar Overlay

Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

MARPA Target Tracking

Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions.

Guard Zone

Set the safety zone, and receive an alarm when an object enters the zone.

VRM and EBL

Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.

Dual Range with Overlay

Single radar antenna is capable of providing split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range. One or both ranges can also be viewed as a chart overlay.



General

Physical Dimensions

4' array: 52.25" x 5" x 6.75" (132.7 x 12.7 x 17.1 cm)

Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)

Weight

array: 12.2 lb (5.5 kg)

pedestal: 47.1 lb (21.4 kg)

Water Rating IPX6
Peak Transmit Power

12 kW

Max Wind Load

80kt

Antenna Length

48" (121.92 cm)

Rotation Speed (RPM)

24 and 48 rpm

Beam Width

1.8° horizontal, 23° vertical

Maximum Range

72 nm

Minimum Range 20 Meters
Radar Type

Open-Array

Electrical

Power Input

10-32 V DC

Radar Features

Overlay
Dual Range
Dual Radar Support
AutoBird Gain
Autogain Dynamic
MARPA with Auto Acquisition

Yes (Requires Heading Sensor, Sold Separately)

Echo Trails
Programmable Antenna Parking
Target Size

Pulse Expansion

In the Box

  • GMR 1224 xHD2
  • Mounting hardware kit and template
  • Power cable (15 meters)
  • Network cable (15 meters)
  • Cable grommet
  • Voltage converter
  • Documentation
