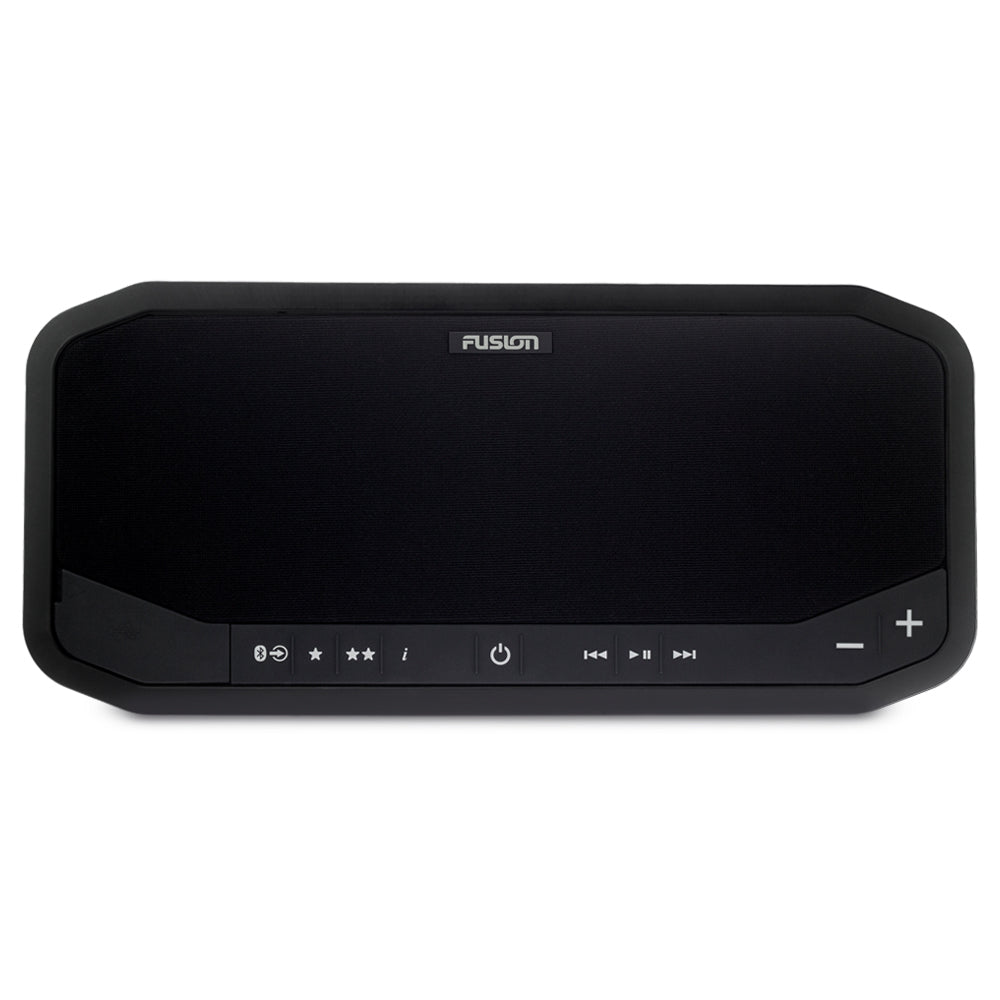

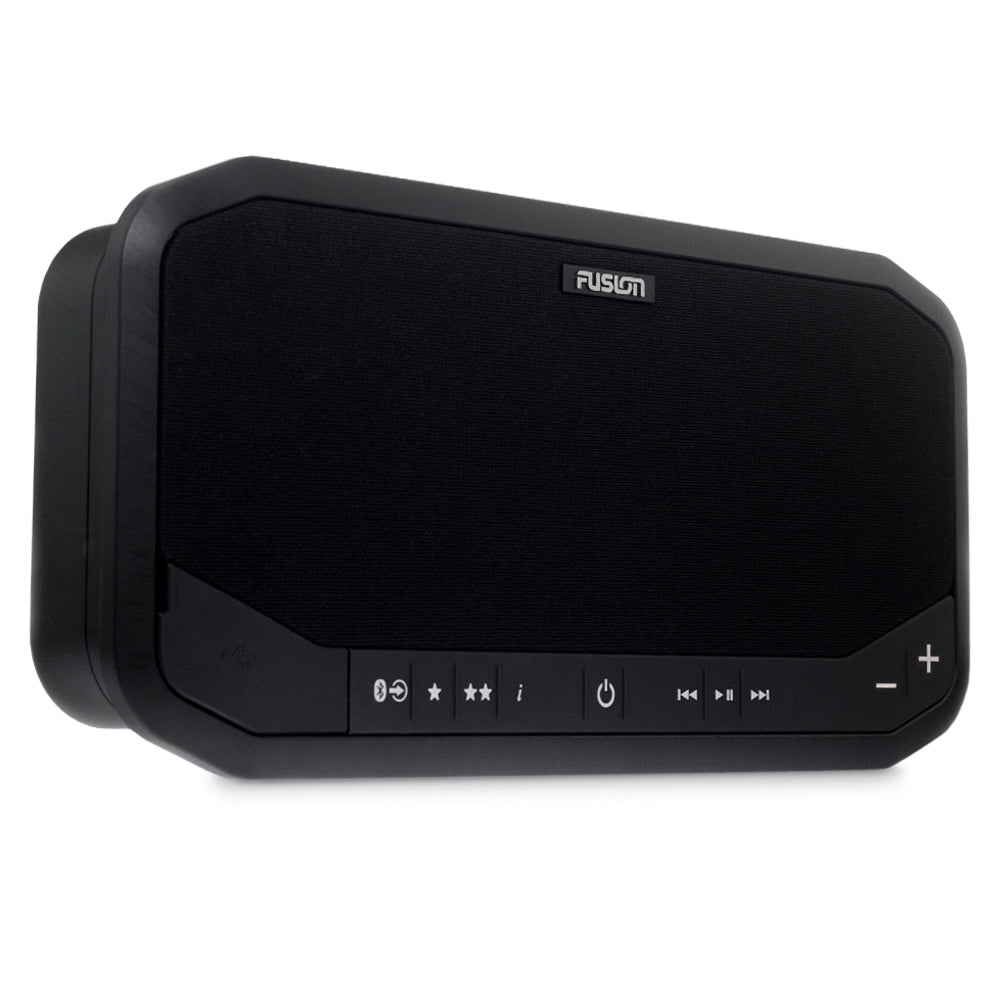

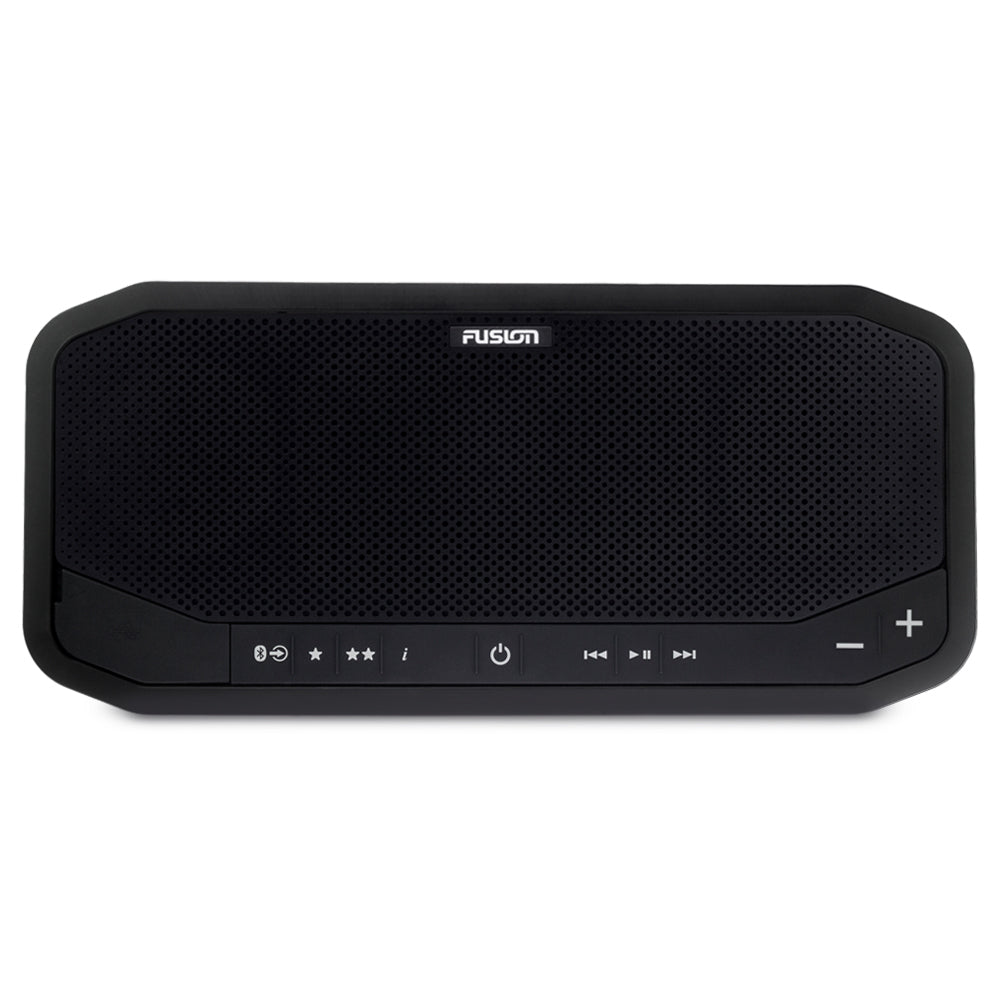

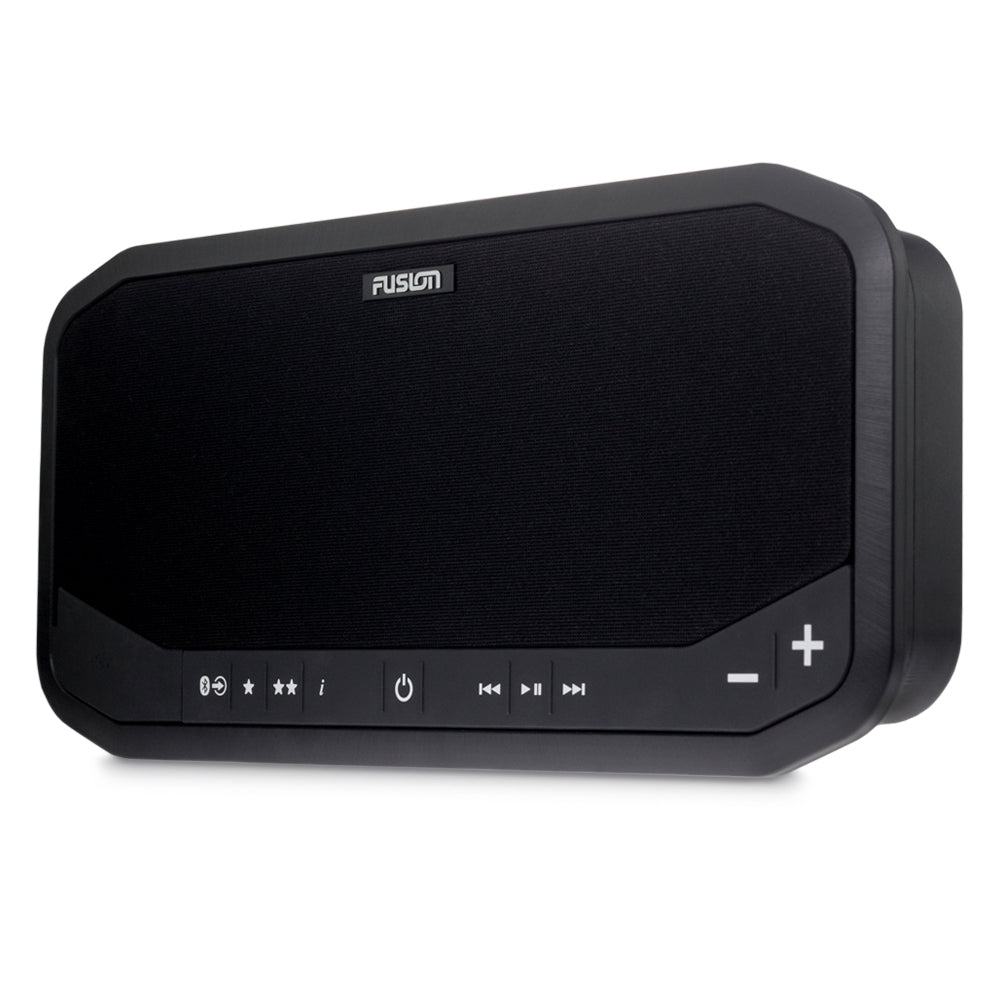

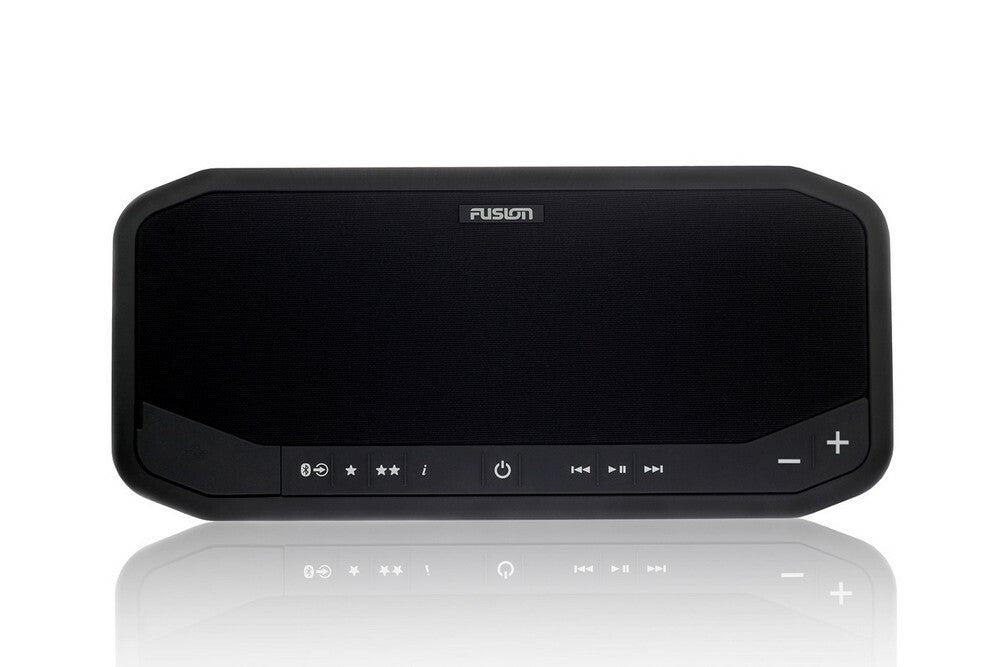

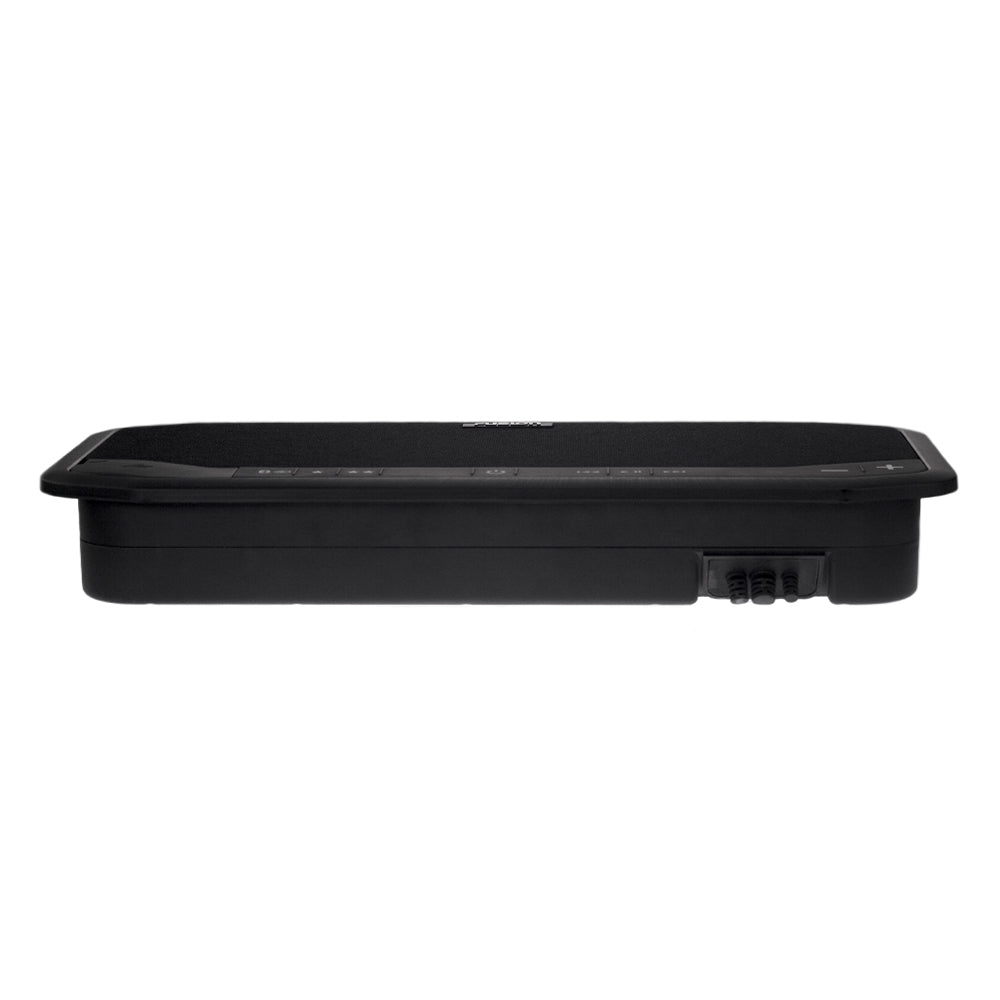

Fusion Panel Stereo All-In-One Bluetooth Marine Stereo

No reviews yet
Part Number:
PLUG-AND-PLAY, ALL-IN-ONE SOLUTION

The Panel-Stereo from Fusion allows you to enjoy quality audio on board your boat from the convenience of a single unit – designed to save time and money with a quick and simple installation.

  • Preconfigured Digital Signal Processing (DSP) technology for a superior listening experience.
  • Hi-Fi audio reproduction through preconfigured DSP.
  • Built-in Class-D amplifier delivers higher efficiency and greater output.
  • Optimally tuned, sealed enclosure with two 3-inch speakers and a passive bass radiator.
  • Multiple mounting options available, including flush, flat and surface mounting.
  • Control your music from a compatible smart device or Garmin watch.

IP65 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Panel-Stereo has an IP65 rating for protection against dust and water ingress. The Panel-Stereo Outdoor is tested to a high level of protection against UV and comes with a high-grade plastic grille.

QUICK AND SIMPLE TO INSTALL
The Panel-Stereo operates on 12-volt DC power, an earth connection, AM/FM antenna and a single cutout at most is required at installation – it is a true plug-and-play, all-in-one audio entertainment solution.

FUSION DIGITAL SIGNAL PROCESSING
A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels.

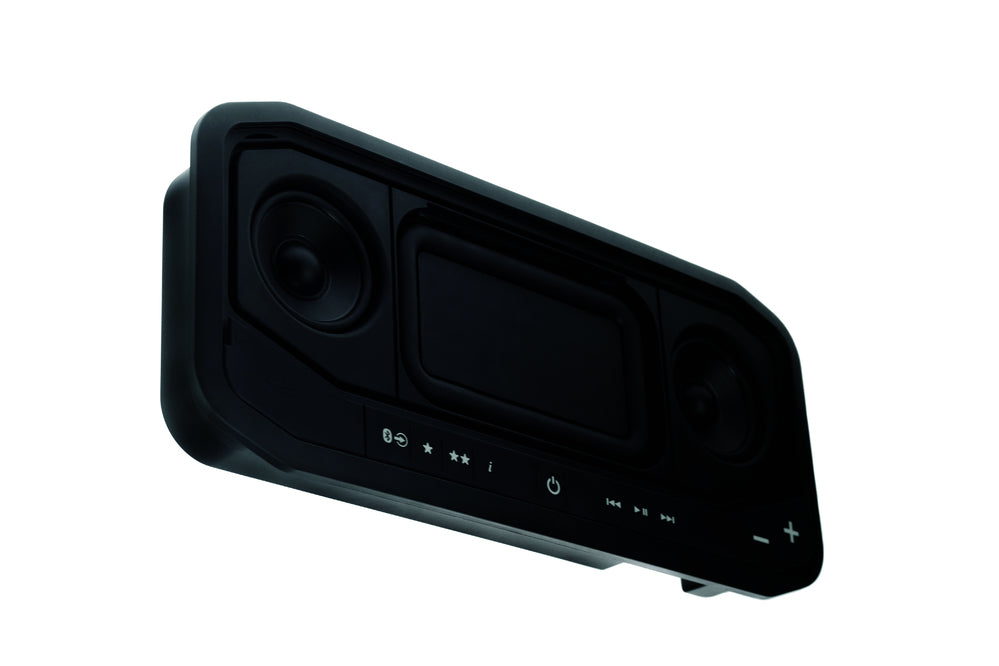

PERFECTLY TUNED ENCLOSURE

The Panel-Stereo is brilliantly designed – combining built-in amplification, stereo source selection, two 3-inch speakers and a large surface passive bass radiator to deliver premium, optimized audio on board from a single unit.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the different source options available, including BLUETOOTH® technology, AM/FM radio, AUX and USB connections.

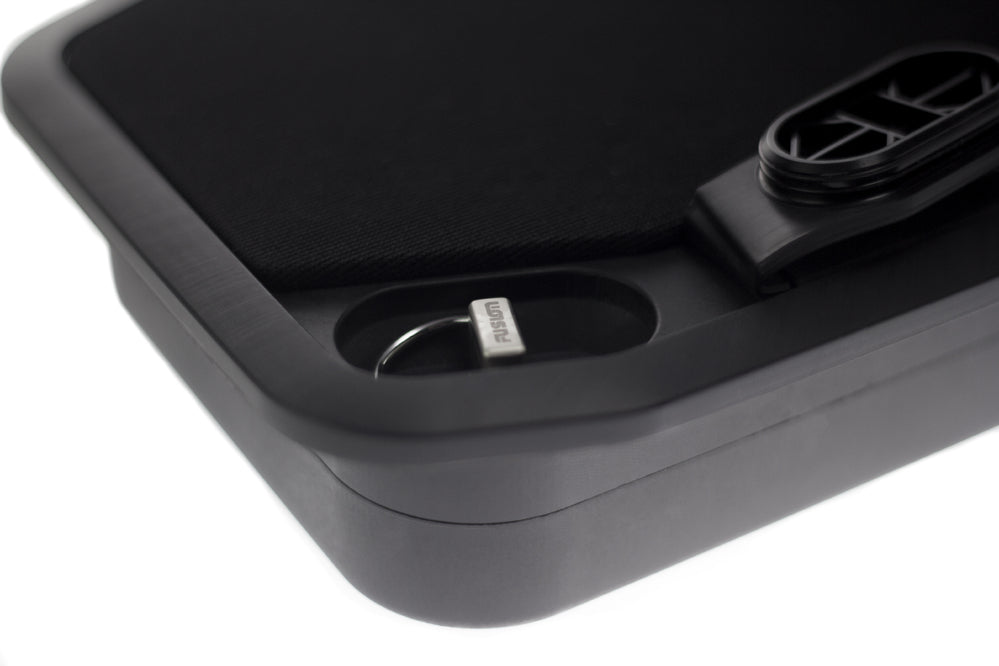

SURFACE MOUNTING SPACER
You can install the Panel-Stereo with a conventional flush mount or premium flat finish. Alternatively use the accessory mounting spacer to surface mount the Panel-Stereo, with no mounting cut-out required.

SPECIFICATIONS
Physical dimensions (HxWxD) 6.10" x 13.54" x 1.97" (155 x 344 x 50 mm)
Weight 2.54 lb (1.15 kg)
Water Rating IP65 (excluding rear connectors)
Power Input 10.8-16 VDC
Operating Temperature Range 32° to 122° F (0° to 50° C)
Current (MAX.) 10 A
Fuse 10 A
Bluetooth Wireless Range Up to 30 ft (10 m)
ANT Wireless Range Up to 10 ft (3 m)
Wireless Frequencies/
Protocols
Bluetooth 2.4 GHz @ +9 dBm nominal
ANT 2.4 GHz @ +9 dBm nominal
Compass-Safe Distance 7.6' (229 mm)



STEREO FEATURES
Built-In Amplifier Class-D
Peak Power 140 W
Rated Power Output 43 W rms x 2 @ 14.4 V input < 1% THD
Built-In Digital Processing Yes
Fusion-Link™ Control yes (smartphone and Garmin watch)
Bluetooth Wireless Technology Yes
ANT Wireless Technology Yes
Language Dutch/English/French/German/Italian/Japanese/Mandarin Chinese/Spanish
Software Updates USB
Warranty 1 year



SOURCES
Sources AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x2/AOA



CONNECTIONS
Auxiliary Input Two RCA inputs (AUX1, AUX2)
USB 2.0 1 port
AM/FM Radio 1 Motorola antenna connector port
Line Out 1 RCA output (AUX)



What's in the Box?

  • Fusion Panel-Stereo
  • Stereo trim
  • Six 6-gauge, self-tapping stainless steel screws
  • Power wiring harness
  • Documentation
