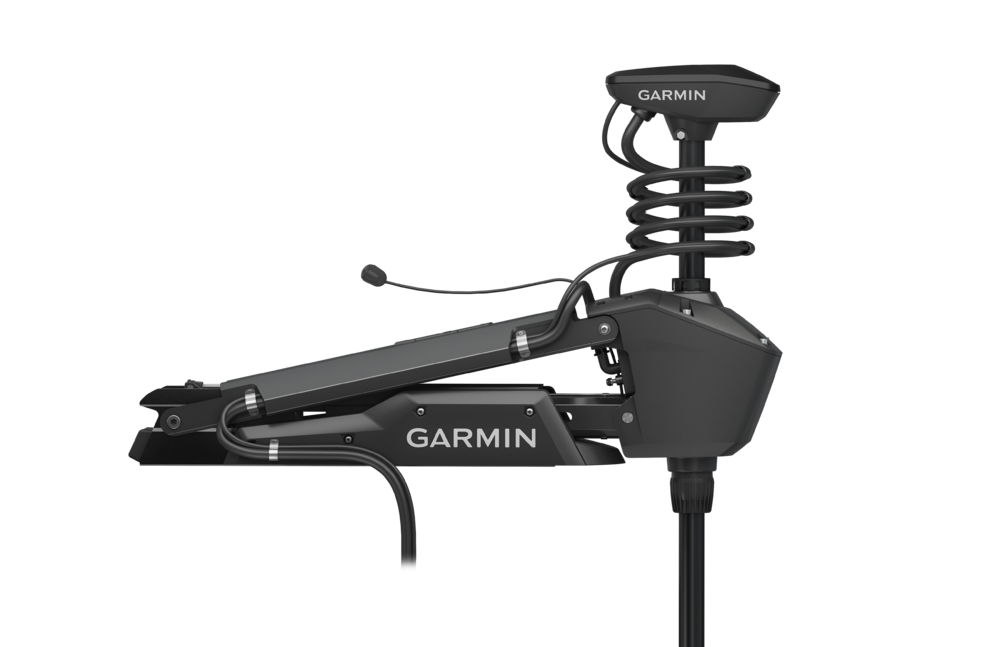

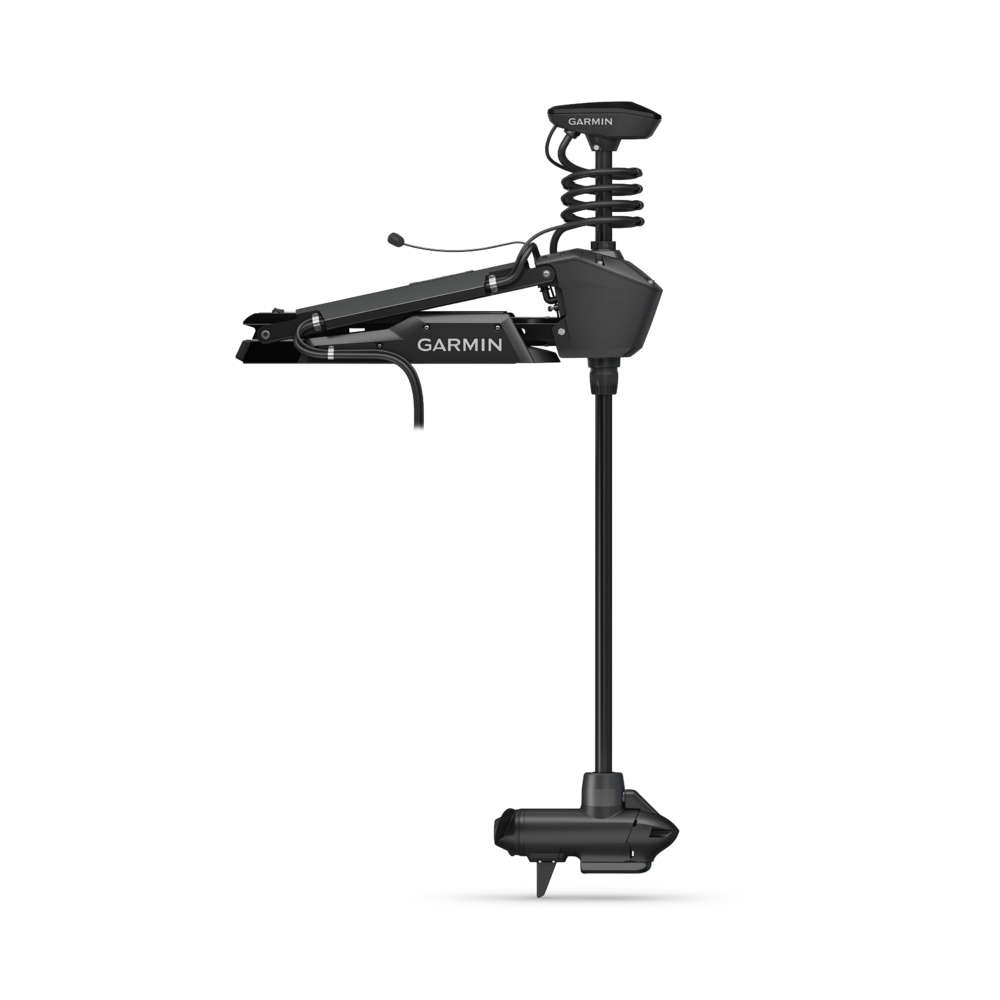

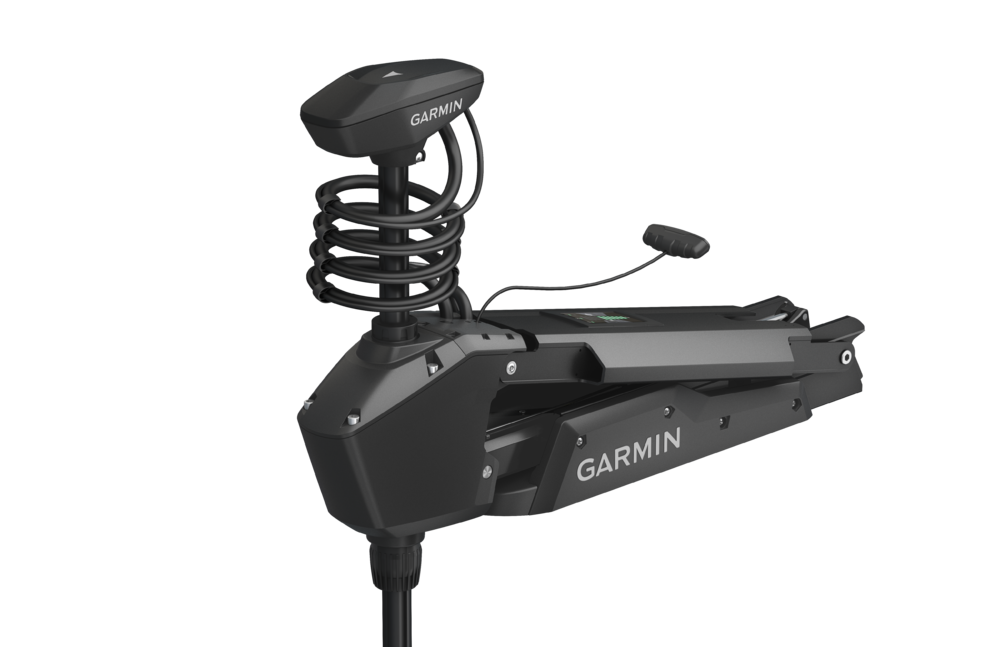

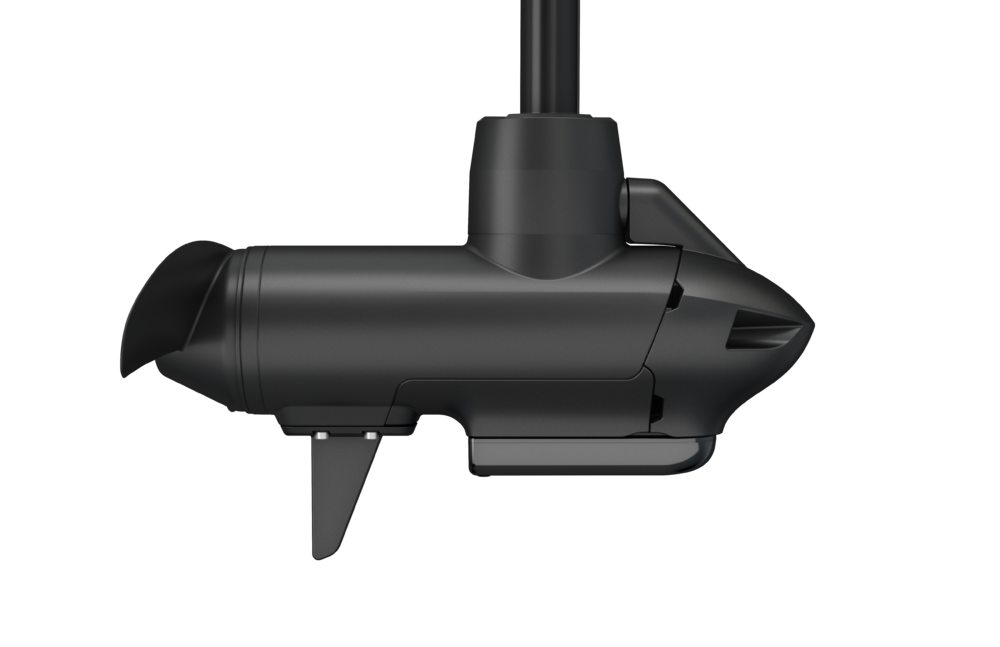

Force™ Trolling Motor 50”

No reviews yet
Bulk Item Bulk Item
Part Number:

FISH WITH FORCE

Get on fish faster, and stay on the water with the most powerful, most efficient trolling motor available1 — and it’s quiet, too.

  • Force is more efficient at 24 V than the competition’s 36 V system. No lie.
  • Wirelessly connect to your Garmin chartplotter, and open up a world of possibilities.
  • It comes with sonar built in, too? That’s just too good to be true.
  • All the control of a cable-steered pedal without the cable.
  • Just point the handheld remote where you want to go, and Force will take you there.

High-Powered

Force trolling motor has the power to move you from spot to spot more quickly and stand up better to winds and currents — and it’s still whisper quiet.

Remarkable Efficiency

The high-efficiency brushless motor operates at either 36 V or 24 V. When running at 24 V, it delivers comparable thrust to our competitors’ 36-V motors.

Quiet Above and Below the Water

The ultraquiet motor doesn’t scare fish and is nearly undetectable to sonar, so it won’t fuzz up your sonar screens with static.

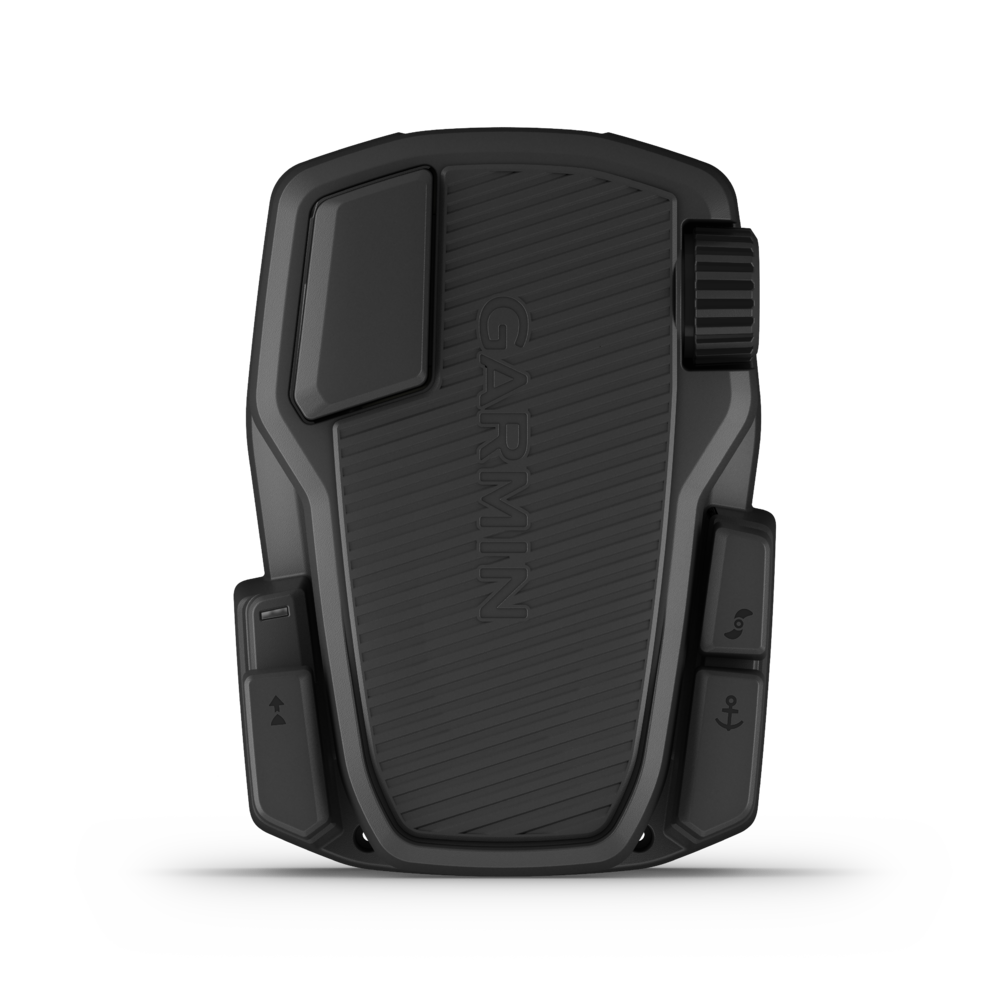

Wireless Foot Pedal

Get instant responsiveness in a convenient pedal that feels and steers just like a cable-steered pedal. It operates wirelessly using AA batteries, but it can still be hardwire installed.

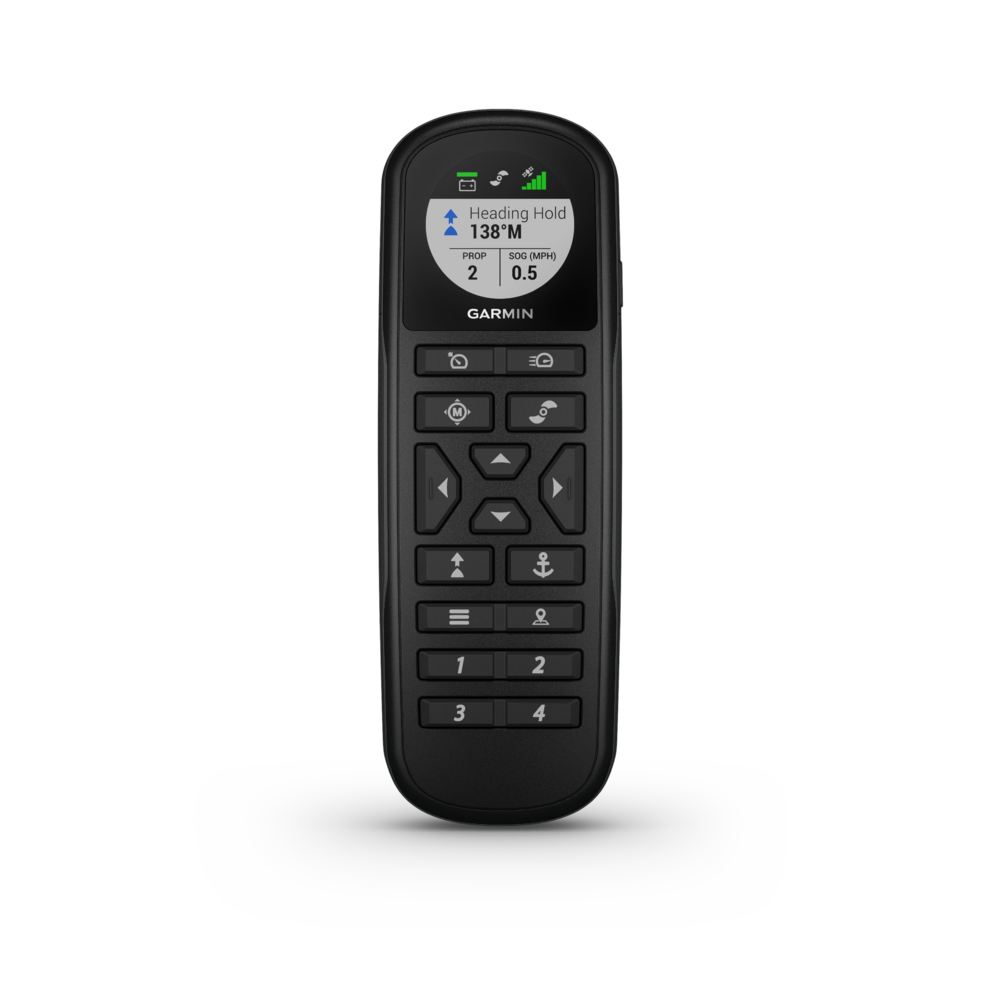

Water-Resistant, Floating Remote

The included handheld remote control with a sunlight-readable display controls the trolling motor and features point-and-go gesture steering. User-programmable keys can be used to control your chartplotter.

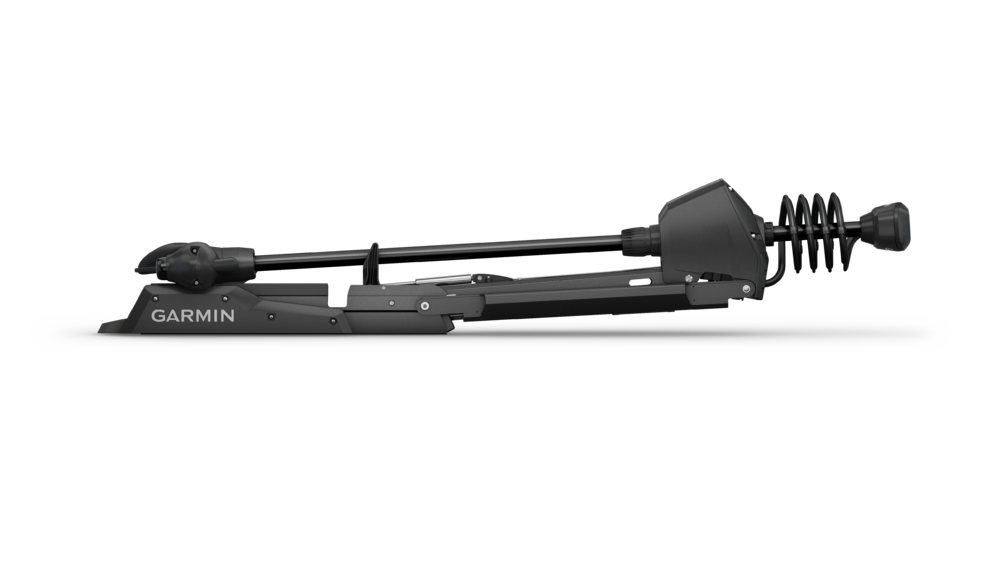

Robust and Easy to Use

The Force trolling motor is rugged and durable, easy to deploy, and easy to retract and stow with dual gas springs. It’s backed with a 3-year warranty and a limited lifetime warranty on the shaft.

Wireless Chartplotter Integration

Wirelessly connect Force to your Garmin chartplotter, so you can create routes to your favorite waypoints and follow tracks while you fish.

Integrated Sonar

Force comes with a built-in transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. See the specs tab for more details on additional sonar support.

Built-In Autopilot

The built-in autopilot, with integrated heading sensor and GPS, provides anchor lock, heading hold and cruise control. Just set your track, and it will guide you along your course.

In the Box:

  • Trolling Motor
  • Built-in GT54UHD-TM transducer
  • Foot Pedal
  • Remote
  • High Efficiency Propeller
  • Stabilizer
  • Assembly and Mounting Hardware
  • Documentation

Motor

Shaft length 50"
For use in freshwater, brackish water and saltwater
Mounting location bow
Mount style scissor style mount
Max thrust 100 lbs Per ISO 13342 using high efficiency propeller at 36V; 80lbs per ISO 13342 using high efficiency propeller at 24 Vdc
Voltage 24 V or 36 V
Electric steering yes
Lift-assist dual gas springs
Built-in heading sensor yes
Built-in GPS yes (high-sensitivity GPS)
Warranty 3-year, limited lifetime on shaft
Water rating (components above water) IPX7
Wireless remote yes (included)
Foot pedal yes (included)

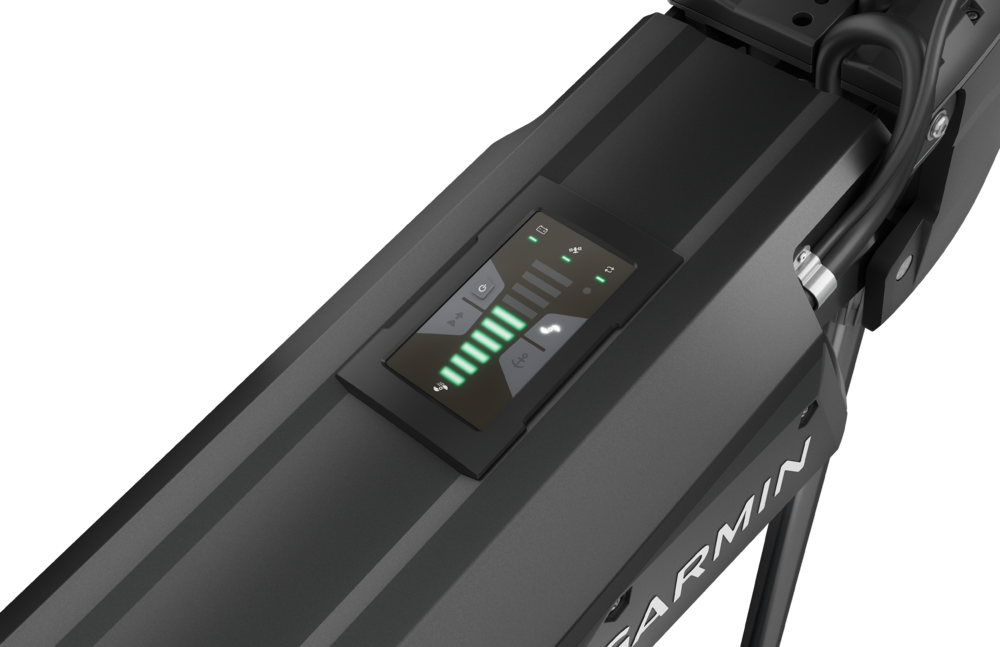

Battery indicator yes
Variable speed control yes (20 steps)


Sonar

Frequencies supported CHIRP sonar: High-wide CHIRP (150-240 kHz)

ClearVu: Ultra-high definition 800 kHz

SideVu: Ultra-high definition 1200 kHz and 455 kHz
Partial frequencies supported CHIRP Sonar: High-wide CHIRP (150-240 kHz)

ClearVü: 800 kHz

SideVü: 455 kHz
Transmit power 350 W
Maximum depth CHIRP sonar: 800'

ClearVü: 200'

Ultra-high definition SideVü: 125' to each side; 250 total at a max depth of 30'

455 kHz SideVü: 500' to each side; 1000' total
Depth/speed/temperature depth and temperature
Number of pins 12-pin (orange connector)


AutoPilot Features

Route following yes
Anchor lock yes
Heading hold yes
Cruise contorol yes
Gesture features yes (manual+, heading hold+, jog+)


Foot Pedal

Dimensions 12" L x 9" W x 4 1/2" H
Wireless communication yes
Power installation 12V wired or battery powered (2 AA)
AA battery life 1 full season
Waterproof rating IPX7
Adjustable pedal resistance yes


Remote

Display size 1.2" (30.4 mm) diameter
Display resolution 240 x 240 pixels
Display type color, sunlight-visible, transflective memory-in-pixel (MIP)
Chartplotter user programmable keys yes
Autopilot feature control yes
Water rating IPX7
Battery life typical use with backlight at low, 43.2 weeks
Floats yes
