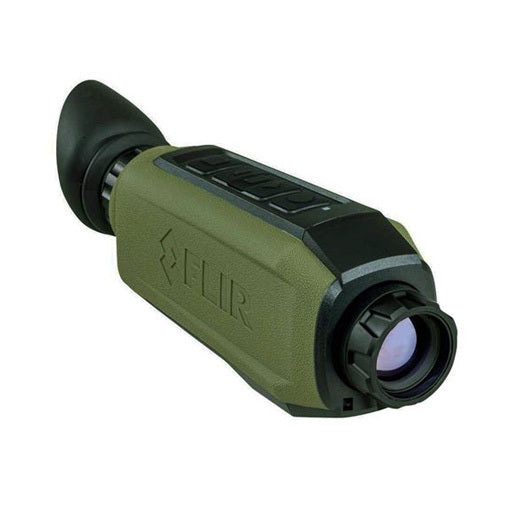

FLIR SCION OTM366 Thermal Monocular
FLIR SCION OTM366 Thermal Monocular

FLIR SCION OTM366 Thermal Monocular

No reviews yet
Part Number:

The FLIR Scion OTM366 captures clear thermal imaging and leverages a refined user interface to quickly detect objects of interest in complete darkness and through glaring light or haze. Built around FLIR's powerful Boson core, the Scion OTM produces 9 or 60 Hz thermal imaging and records geotagged video and still images for playback long after the day is done. A rugged, IP67-rated housing and intuitive controls allow single-hand operation in harsh weather conditions, maintaining reliable thermal imaging in the most demanding outdoor environments.

Key Features:
Onboard Video and Image Recording
Revisit every wildlife encounter in sharp thermal imaging with internal and microSD expandable memory

Redesigned User Interface
Polished menus allow quick thermal palette adjustments and provide easy access to new features such as picture-in-picture zoom, video recording, and GPS functionality.

Trusted Thermal Detection
The advanced image processing of FLIR's Boson thermal core and a vivid OLED display offers superb, unwavering vision in challenging environments.

Specifications:
Overview

  • Field of view (FOV): 18o x 13o

System Overview

  • Detector Type: 640 x 480
  • Eye Relief: 16 mm
  • Internal Memory: 2 GB Internal Storage / Optional microSD Card (up to 128 GB)
  • Size: 239 x 76.8 x 60.5 mm (9.4 x 3 x 2.4 in)
  • Color (housing): Green / Black
  • Lens System: 25 mm
  • Optical Magnification: 1.3x
  • Display: Focus Manual
  • Core Technology: BOSON 12 µm Vox Microbolometer

Connections and Communications

  • Bluetooth: BLE 4.1+
  • USB: USB-C; Power In; Video Out; Video and Image File Transfer
  • Geo Positioning [GPS]: Yes
  • Video Recording: Yes
  • WiFi: Video Streaming, File Transfer

Imaging & Optical

  • Digital Zoom: 1X | 2X | 4X | 8X
  • Focus: Manual
  • Refresh Rate: 60 Hz

Physical

  • Mounting: ¼ - 20 Tripod Mount
  • Weight Without Batteries: 452 g; With Batteries 572 g

Power

  • Auto Power Off: Yes
  • Battery life: Up to 4.5 hours at 20°C
  • Battery type: 6x CR123A 3V Lithium Battery

Presentation

  • Display: Quad-VGA (1280 x 960) High definition display
  • Image Capture: Yes
  • Temperature Imaging Modes: White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
  • Viewing Modes: Scouting, Picture-in-Picture
  • Picture While Recording: Yes
  • Real-Time Clock: Yes
  • DateTime Stamp: Yes
  • Magnetic Compass: Yes
  • Accelerometer: Yes
