Depth Transducer (Depth Retractable - 80M Range)
Depth Transducer (Depth Retractable - 80M Range)

Depth Transducer (Depth Retractable - 80M Range)

No reviews yet
Part Number:

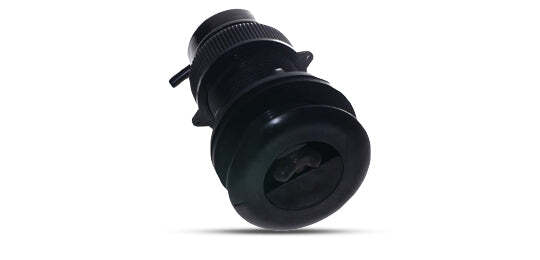

Raymarine's T912 Thru-Hull Retractable Transducer is a nearly flush, low-profile model that sends depth data by cable to Raymarine T121 Hull Transmitters.


  • Nearly flush, low-profile model minimizes drag with only 3/16" protruding outside of hull
  • Long-body style, fully retractable transducer insert is easily removed from housing for routine servicing or replacement
  • Patented self-closing valve minimizes flow of water into the boat when transducer insert is removed
  • Supplied with low-profile housing and blanking plug
  • Housing is ABYC H-27 compliant
  • Rubber washer (included) allows tightening of hull nut to irregular hull surfaces
  • Sends depth data by cable to Raymarine T121 Hull Transmitter (not included) which then forwards the data to displays by wireless link
  • Suitable for cruising powerboats and sailboats
  • Compatible with Raymarine wireless cruising display systems including T100, T110, T111 and T912
  • Optional in-hull installation – supplied thru-hull fitting can be bonded to inside the hull
  • 2-year warranty

Specifications:Mount: Thru-hull

  • Housing Material: Plastic

Cable Length: 20 ft.

  • Power: 250 Watts RMS
  • Frequency: 200 kHz
  • Cone: 13° Max. Depth Range: 260 ft.
  • Compatible Hull Materials: Fiberglass or aluminum
  • Max. Hull Thickness: 2.12"
  • Hole Diameter for Installation: 2"
  • Dimensions: 4.87" H x 2.94" OD
