No reviews yet
Part Number:

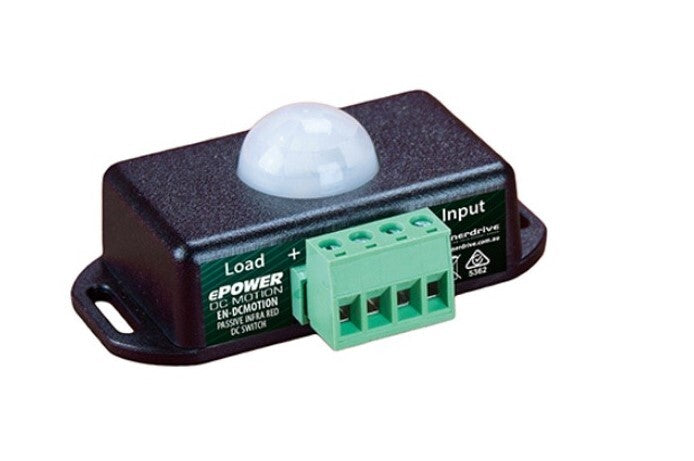

The ePOWER DCMotion is a motion activated switch for 12v and 24v systems for which a Passive Infra-Red Detector (PIR) is used. Output loads up to 10A (continuous) can be connected to the EN-DCMOTION with the added features of over-voltage, under-voltage and over-current disconnect. For indoor use only. The DCMotion can be used in a number of situations like yacht or ship engine rooms, undercover truck loading bays or RV applications.

The delay time can be set by way of an internal potentiometer. This is done in steps of 5 seconds. The minimum delay time is 5 seconds and the maximum delay time is 60 seconds. Default is a delay time of about 30 seconds. The load will be disconnected 30 seconds after the last motion is detected.


  • Recreational vehicles
  • Industrial systems
  • Service vehicles
  • Maritime applications
Auto Voltage 12VDC / 24VDC
Switch Off
5 min.
Power Up
Detection Angle 60° H – 60° V
5 meter
LED Light No
Weight 30g
L x W x H
76.5 x 48.5 x 30mm
