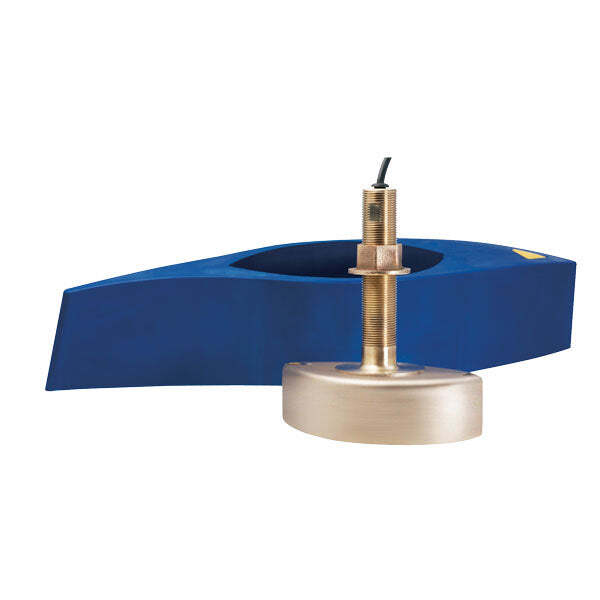

D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer
D/T Through Hull Wide Beam Transducer

D/T Through Hull Wide Beam Transducer

No reviews yet
Part Number:

The CP470, CP570 and RVX1000 sonar modules require 2 elements to function. Either Low/High (LH), Low/Medium (LM) or Med/High (MH).


Choose from dual element transducers, or paired single element transducers to be connected with CHIRP Transducer Y-Cable (A102146).


Airmar's exclusive wide beam transducers features a constant 25 degree beam angle for the entire High CHIRP spectrum. The result is improved shallow water coverage while maintaining the high resolution capabilities associated with the High CHIRP channel. Available in a variety of configurations, there is a wide beam transducer solution for almost any vessel. *All wide beam products come with a 2M pigtail off the transducer. Pair with a CHIRP Transducer Extension Cable (3, 5 or 10M) for a complete transducer installation.

Part Number A80319 A80320 A80321
Material Bronze Urethane
Power (RMS) 1,000W 2,000W 3,000W
Max Depth (Ft) 3,000(L) / 800(H) 6,000(L) / 800(H) 10,000(L) / 800(H)
Frequency (KHz) 42-65(L) /

150-250(H)
38-75(L) /

150-250(H)
28-60(L) / 150-250(H)
Beam Width 25°-16°(L) /

25°(H)
19°-10°(L) /

25°(H)
23°-9°(L) /

25°(H)
Records Depth / Temperature
Hull Material Fibreglass / Wood Fibreglass / Wood / Metal
Cable Length (Ft/M) 6 / 2* 6/2* 6 / 2*10
Deadrise Angles 0-20° 0-25° 0-25°
