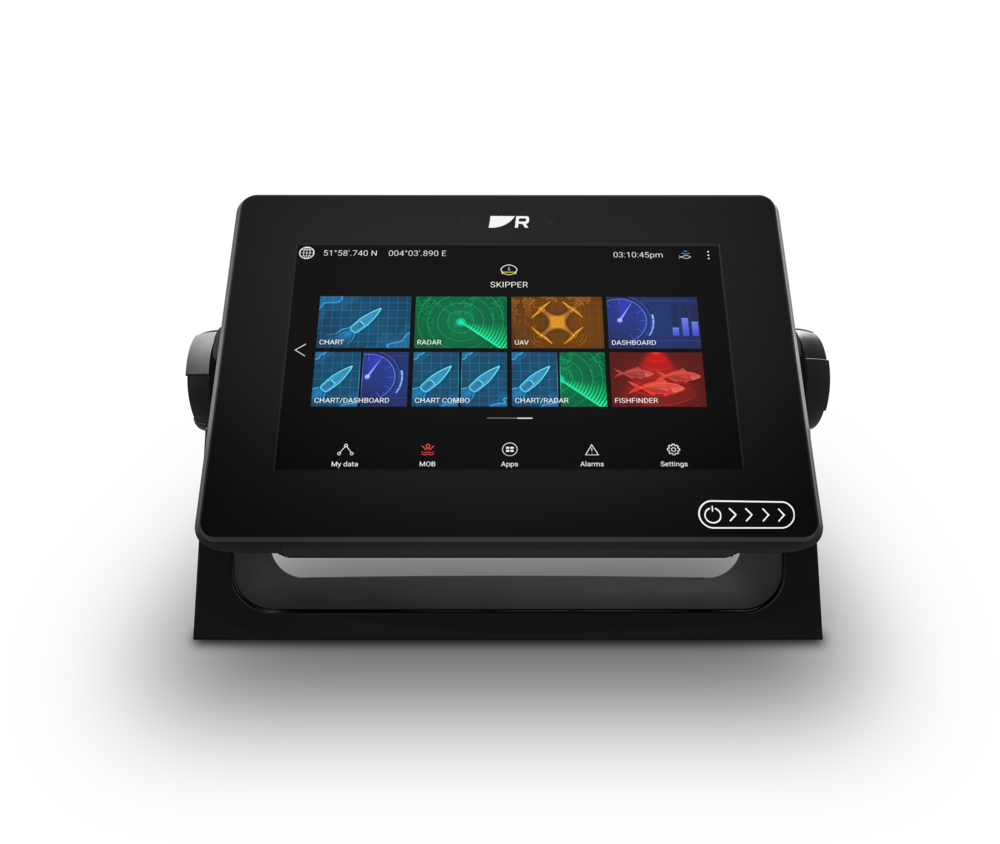

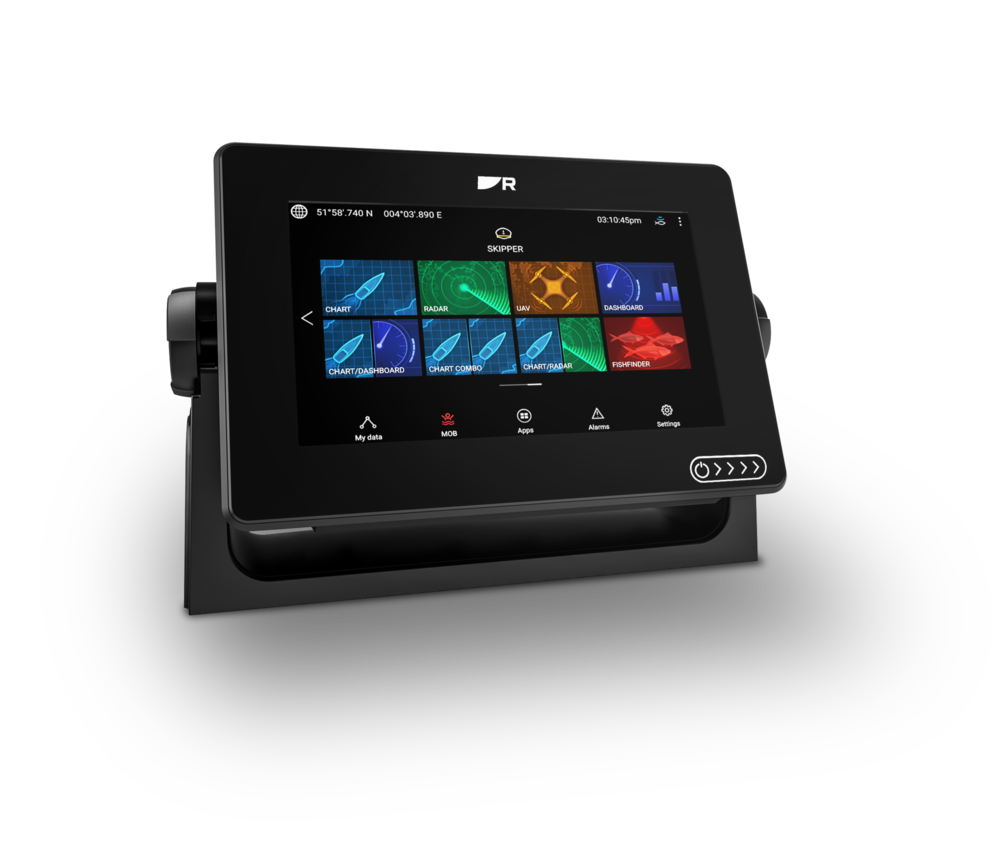

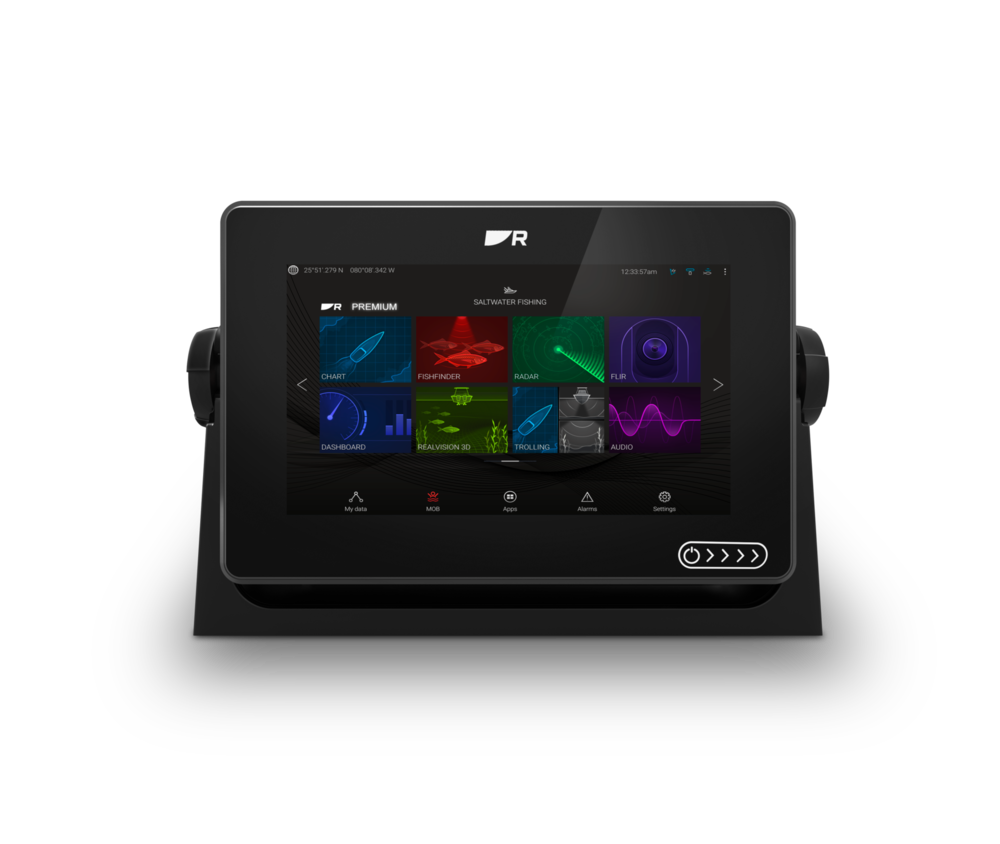

Axiom+ 7 - 7" Chartplotter Multifunction Display

No reviews yet
Part Number:

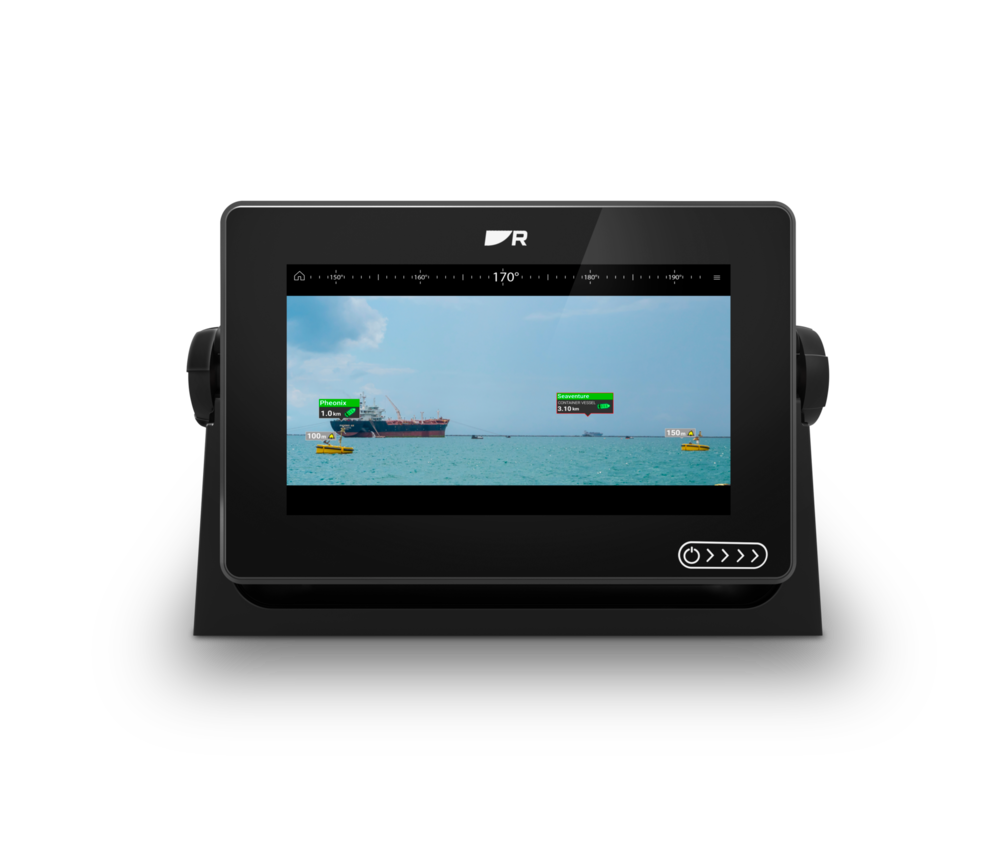

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality.

MODEL Axiom+ 7
GENERAL
Display Size 7.0 inch High Density IPS
Display Resolution 1024 x 600 (WSVGA)
Display Type Multitouch with HydroTough™ rugged hydrophobic coating
Brightness 1,500 nits
Viewing Angle 85° Top, Bottom, Left, Right
Dimensions
W x H x D
210 x 142 x 77mm

7.92 x 5.24 x 3.0in

(Excluding trunnion and cables)
Weight 3 lbs
Mounting Options Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating IPX6 / IPX7
Operating Temperature Range -25°C to +55°C (-13°F to +131°F)
Storage Temperature Range -30°C to +70°C (-22°F to +158°F)
POWER
Voltage 12V DC (8V to 16V DC)
Power Consumption (Full brightness) 7.34 Watts. RV Sonar version 9.84 Watts
SENSORS
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel

*Future software update required

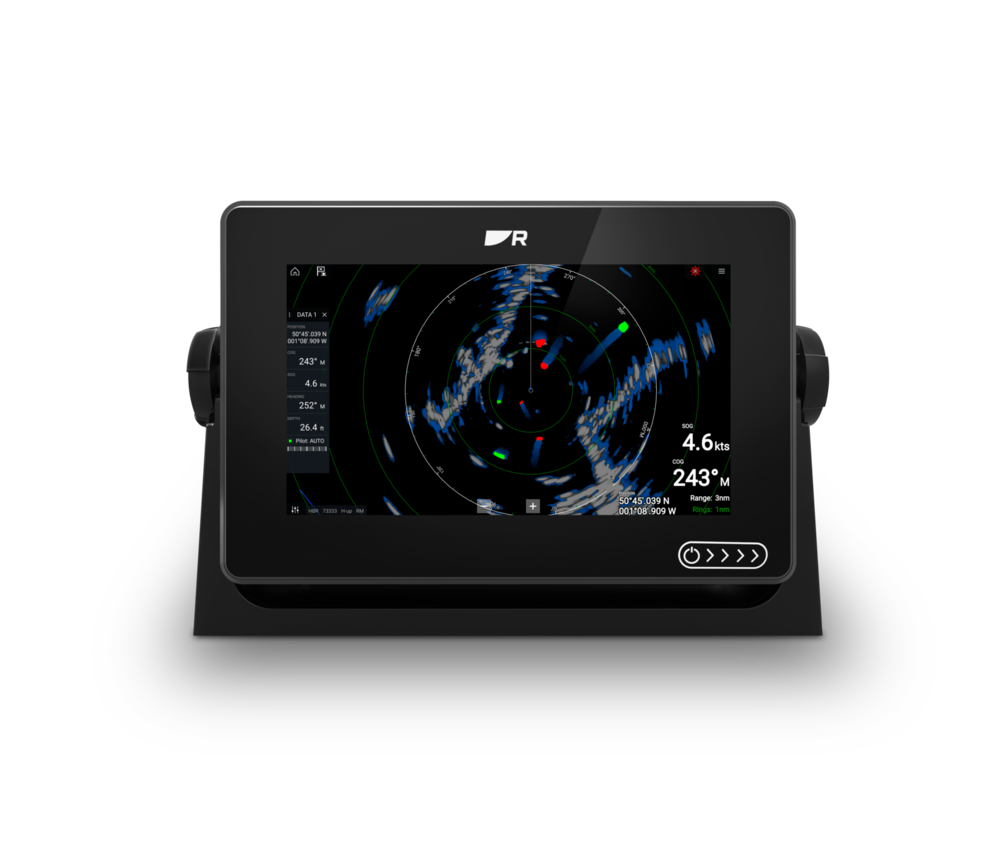

Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AIS Yes - NMEA2000 compatible
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500
Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only
Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
Digital Switching Yes - Empirbus & C-Zone compatible
Remote Control Yes Optional RMK-10 (A80438)
NETWORKING
Ethernet 1 x 10/100 Mbit/s Network (RayNet)
NMEA0183 No
NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a/b/g/n
BlueTooth Bluetooth v4.0
Navigation

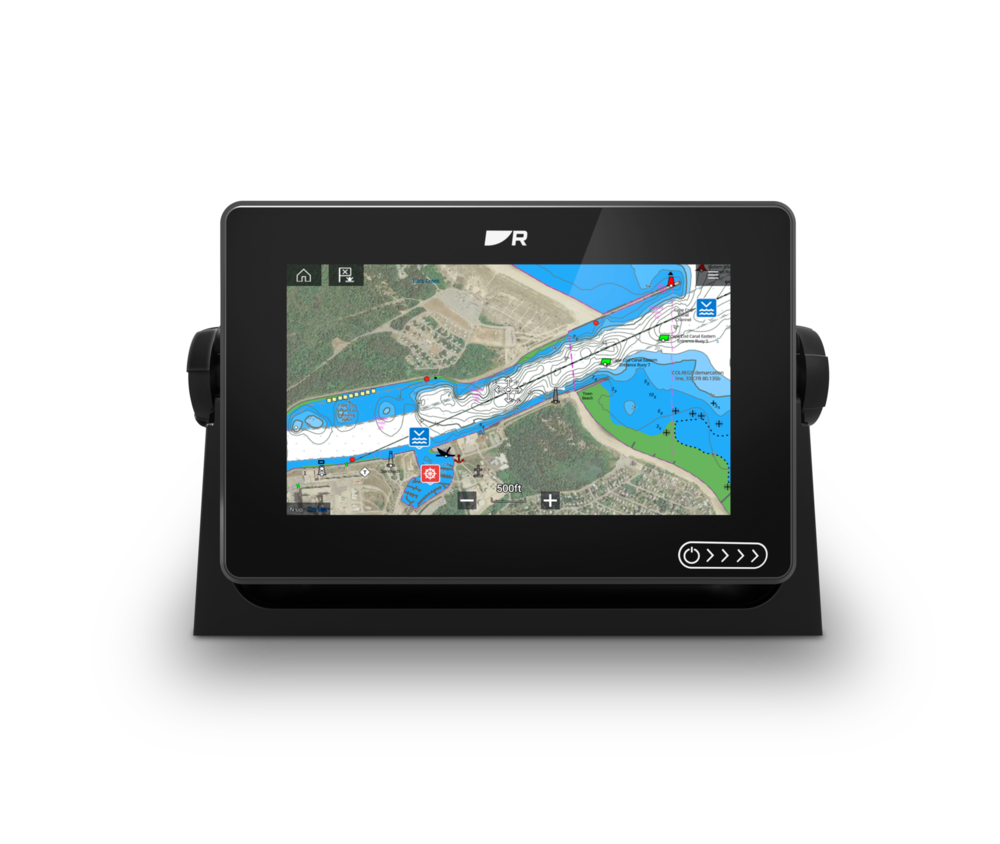

Cartography Lighthouse Charts, Navionics, and C-MAP compatible
Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal Memory 16 GB Solid State
External Memory 1x MicroSD Card Slot
Languages 24
Conformances NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210
OTHER
Languages 24
Conformances NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210
