ActiveTarget® 2 gives you the highest resolution, widest, and clearest live views of fish and structure. By watching fish respond to your lure in real-time, you can make the quick adjustments that make the difference and help you catch more fish.

Catching fish is easier when you can see them interacting with structure and responding to your lure – in real-time – with Lowrance® high-resolution ActiveTarget® 2 Live Sonar.

See the clearest, highest-resolution images of fish swimming in and around cover and structure with ActiveTarget® 2 Live Sonar.

Get the best picture every time with optimized image and stabilization settings that deliver crisp and clear live-action views of fish and structure, even in rough conditions.

Quickly recognize if your lure presentation is working or if you need to adjust to get fish to strike – information that is harder to get from traditional sonar or structure imaging.

It’s easy. Drop your lure on a fish and watch the catch unfold in real-time – from the fish striking your lure to reeling the fish to the surface – you'll see it all in incredible detail.

Delivering a smoother and more consistent image across the entire range, ActiveTarget® 2 shows you exactly what’s going on under the surface as a live-action feed.

Enhancements to the beams broadcast from the ActiveTarget® 2 system make it possible to show more detailed images further from the boat than ever before.

Track fish and your lure presentation with high-resolution views in front, below and to the sides your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat. Perfect for finding bait balls and big schools of fish.

  • Forward View
  • See clearer structure and fish that are in front of your boat, so you can perfectly target your next cast.
  • Down View
  • Know the depth and see live in more detail what is directly below your boat so you can drop your lure right on the fish.

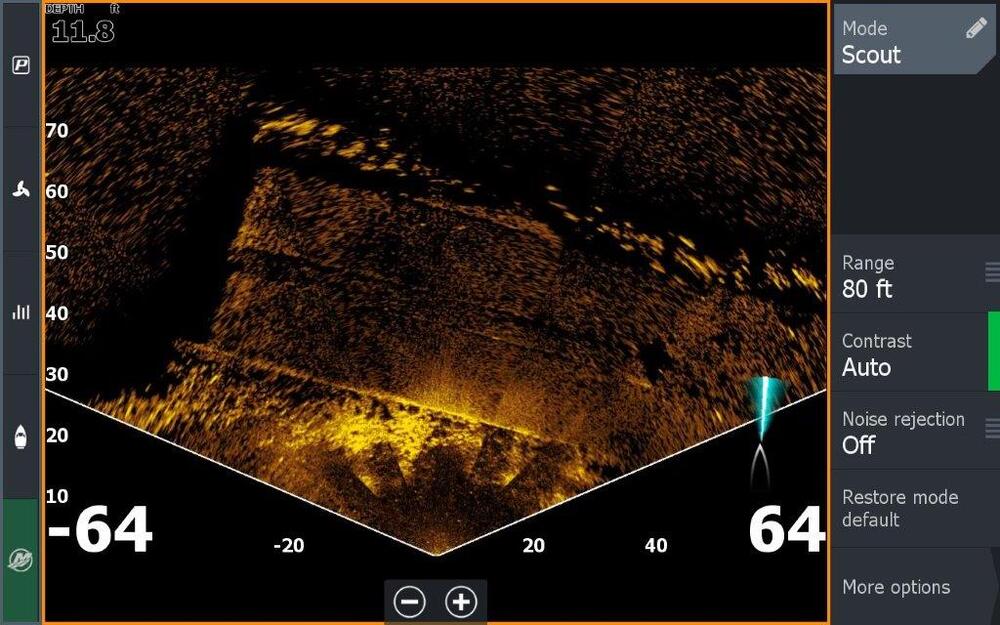

  • Scout View
  • See a live overhead wide-view in front of your boat to know what's around and which direction you should be casting.

Target fish better than ever on HDS® PRO, watching multiple ActiveTarget® 2 views at the same time, with a second optional ActiveTarget® 2 System.

Monitor multiple views at the same time – from Forward, Down, and Scout modes – and enable additional 180 and Scout Wide views for more effective fish and bait tracking ahead of the boat.

  • Scout + Forward View
    Scout mode and Forward mode at the same time with no interference
  • Scout Wide
    Dual Scout Mode for double the live sonar coverage around the boat
  • 180 View
  • See full 180 degrees front-to-back all in one image

Compatible with HDS® PRO, HDS® LIVE, HDS® Carbon and Elite FS®.

Key Features

  • High-resolution, live action images clearly reveal what’s happening underwater in real time
  • Clearest live action views of fish and structure
  • Widest underwater images for quicker interpretation
  • See all around your boat with Forward, Down and Scout view
  • See multiple views simultaneously and enable Forward+Back and Scout Wide views for more effective bait tracking ahead of boat with second optional ActiveTarget 2 transducer
  • Compatible with HDS LIVE, HDS Carbon and Elite FS
Ethernet Ports Yes: 1 - 100 Mbit Ethernet Port
Power Consumption max. 1.5A @ 13.8VDC
Power Consumption typical1 15A @ 13.8VDC
Recommended Fuse Rating 3A
Supply Voltage 10.8 VDC - 31.2 VDC
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Shock Vibration 100,000 ccyles of 20 G
Storage Temperature Range -22°F to 158°F (-30°C to 70°C )
Waterproof Rating IP67
(W x H x D)

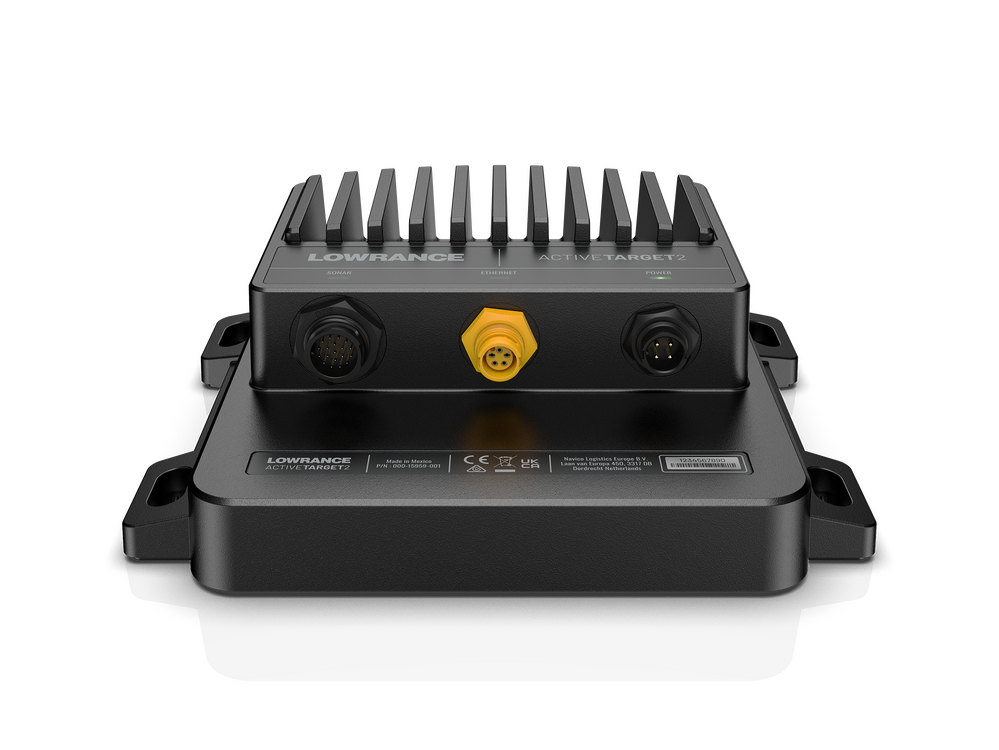

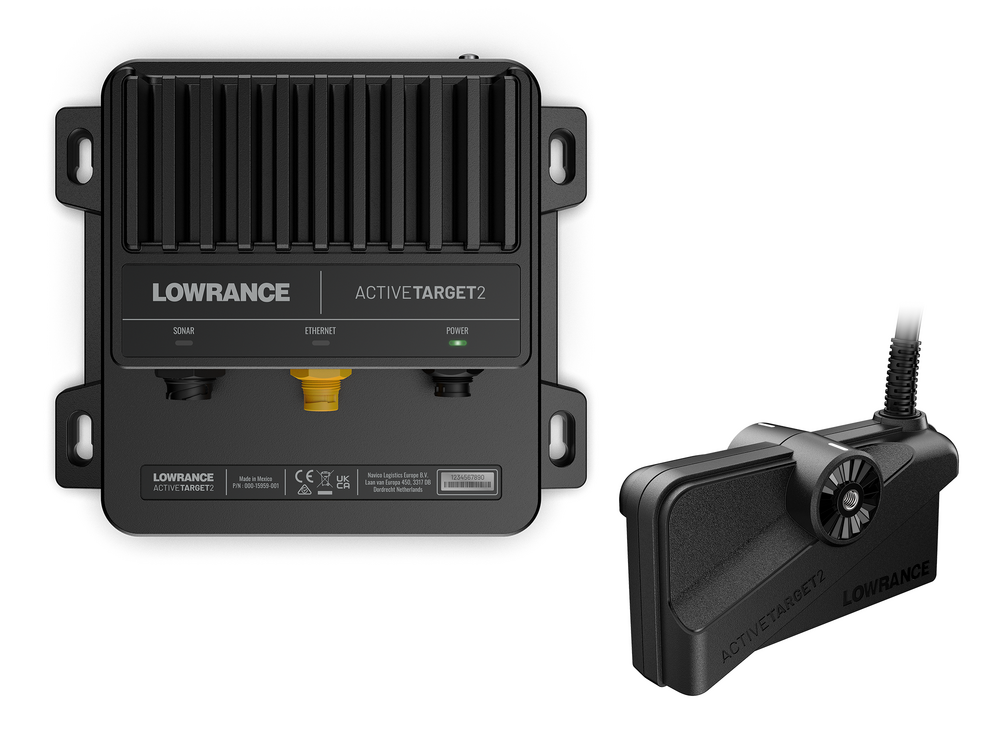

Module: 8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm)

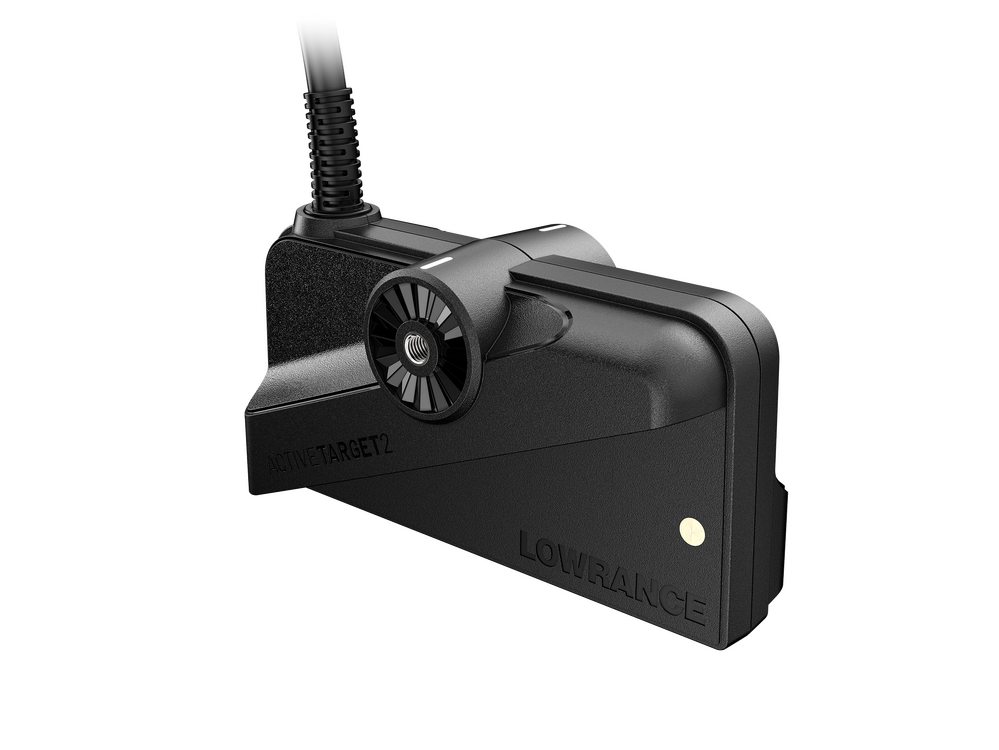

Transducer: 5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)
Mounting Type Module: Surface Mount Transducer: Bracket Mount
Weight Module: 4.12 lbs (1.86 kg) Transducer: 2.67 lbs (1.21 kg)
Interface Ethernet to: HDS Pro HDS Live HDS Carbon Elite FS
Warranty Period 1 Year + 4 additional years of upgrade options Totaling 5 years
