Part Number:

Designed around the popular Model 42 range of rear combination lamps, the Model 41 family boasts all the same features as their larger counterpart but in a smaller more compact package. They offer a fresh, modern design utilising the latest in high performance L.E.Ds, multi-voltage circuitry and stainless steel fittings. Fully ?E? and ADR compliant the lamps are available in single, double and triple housing combinations and feature an intelligent ?snap-in? base system allowing the lamp to be fastened one of two ways depending on the application. Where access to the rear of the lamp is difficult it can be fixed via the supplied self tapping stainless steel screws, alternatively stainless steel bolts are provided that can be tightened from the rear.

Submersible version features 9 metres of hard-wired cable to ensure the electrical connection is made at the trailer plug or above the trailer submersion level. The cable is tinned for increased corrosion resistance

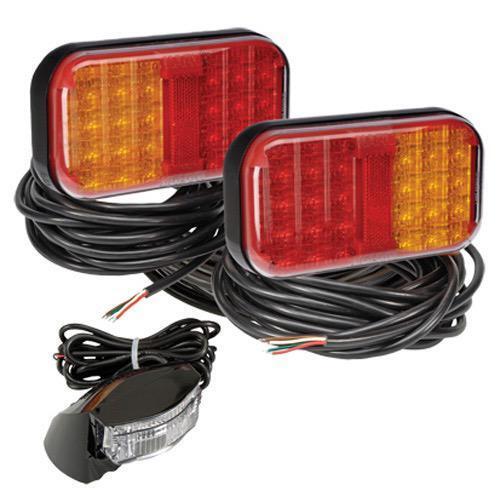

Product Comprises of

  • 94142 2 x 9-33 Volt L.E.D lamps each with 9 metres of hard-wired cable
  • 91674-9 1 x 9-33 Volt L.E.D licence plate lamp with 9 metres of cable

    Current Draw:
  • Indicator: 0.42A at 9?33V
  • Stop: 0.42A at 9?33V
  • Tail: 0.09A at 9?33V
  • Reverse: 0.34A at 9?33V

    IP Rating: IP66 and IP67

    ADR Approved
  • 6/00 (cat 2a) 2a-E9-01. 6255
  • 47/00 IA-E9-O2. 1446
  • 48/00 31770
  • 49/00 R1-S1- E9-02. 6255

    The Model 41 submersible lamp kit is hardwired with 9 metres of cable. This allows connection to be at the trailer plug, an area not submerged in water.
