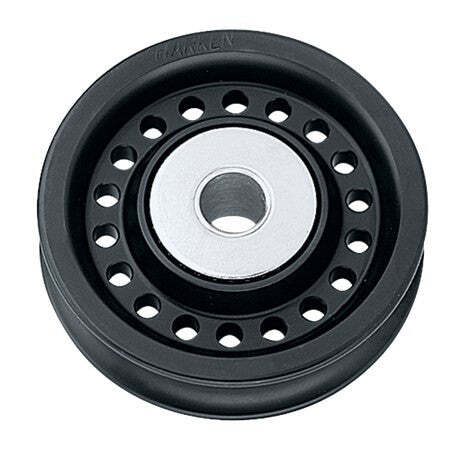

76mm High-Load Sheave
76mm High-Load Sheave

76mm High-Load Sheave

No reviews yet
Part Number:

High-load sheaves are offered as replacement parts or for use in special applications. Their bearing system combines sideload-carrying balls with a PTFE composite bushing to carry radial loads.

SPECIFICATIONS
Sheave Ø 76 mm
Weight 142 g
Width 22 mm
Center Pin Ø 12.7 mm
Maximum Line Ø 12 mm
Maximum Wire Ø 8 mm
Maximum Working Load 3175 kg
Breaking Load 7484 kg
Footnote Breaking load based on use of solid 304 stainless shafts
